3.0T split-top head coil (rev 12) introduction

Product Identification and Shipping List

To identify the 3.0T Split-Top Head Coil, refer to the coil label shown below.

Figure 1. 3.0T Split-Top Head Coil Label

The 3.0T Split-Top Head Coil is shown below.

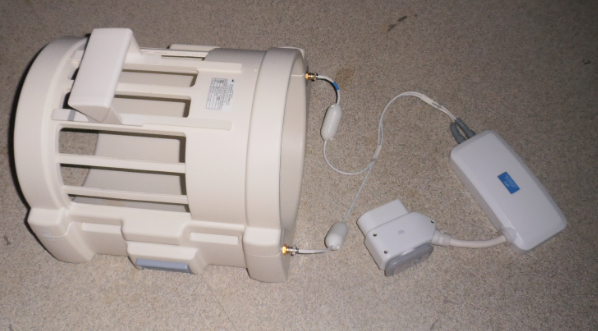

Figure 2. 3.0T Split-Top Head Coil (Rev 12)
Table 1. 3.0T Split-Top Head Coil Shipping List
Description GE Part Number Quantity
Discovery MR750 – 3.0T Split Head Coil Assembly51828721
3.0T QHTR Interface Assembly54437201
Cushion Head - Head Coil, HDv53273021
Head Coil Cushion Flat, HDv53273011
Operator Manual, 3.0T HDv Split Head Coil5182872-2991
Kit Head Restraint Straps23522021
Table 2. Table Adapter for SIGNA Pioneer and Premier Shipping List
DescriptionGE part numberQuantity
Adapter Assembly for SIGNA Pioneer and Premier - T/R Split Head Coil58213711

Related Documentation

Signa GE 3.0T Split-Top Head Coil - HDv Operator Manual, 5182872-299.

Environmental Requirements

Storage

This equipment must be stored under the following conditions:

  • Temperature range of -40° to 70° C (-40° to 158° F)

  • Relative humidity range of 10 to 95%, non-condensing

  • Atmospheric pressure range of 525 to 1,013 hPa

Dimensions (Excluding Cable)

425 mm (L) x 420 mm (W) x 366 mm (H) (16.7 x 16.5 x 14.4 inches)

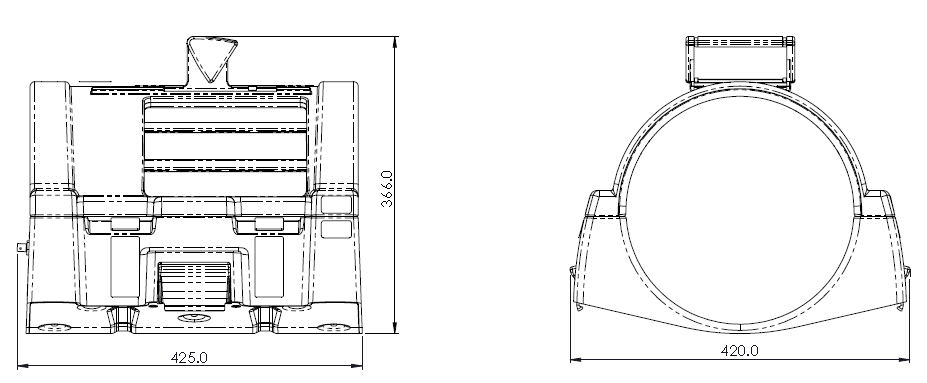

Figure 3. 3.0T Split-Top Head Coil Dimensions

Weight

5.5 kg (12.1 lb)
