• Discovery MR750 3.0T System Service Methods
  • 5690009-2EN Revision 4
  • Object ID: 00000018WIA30A7ED20GYZ
  • Topic ID: id_13105855 Version: 4.0
  • Date: Feb 21, 2021 9:12:43 PM

3.0T HD T/R Knee Array Coil Introduction

Overview

This document describes the 3.0T HD T/R Knee Array Coil by Invivo, catalog M3335LB.

Product Identification and Shipping List

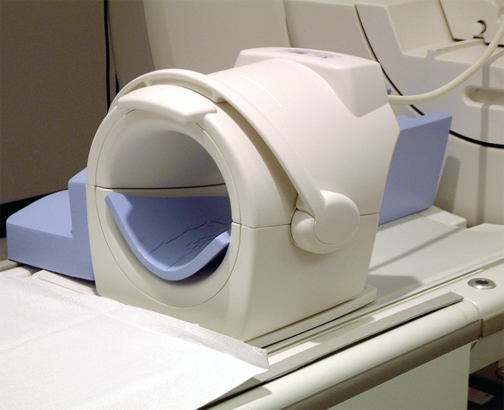

Figure 1. Invivo 3.0T HD T/R Knee Array
Table 1. Shipping List for Coil (Curved Table)
Description GE Part # Invivo # Qty
3.0T HD T/R Knee Array5160254-21045041
3.0T HD T/R Knee Array Operator Manual5160254-35001641
Phantom Positioner5114356-121039431
Knee Pad ThinN/A1050981
Knee Pad ThickN/A1050991
Ramp PadN/A1041361
Ankle PadN/A1041371
Phantom Elimination Operator Manual Addendum5364417n/a1

Related Documents

(For curved table) 3.0T HD T/R Knee Array Operator’s Manual, 5160254-3

Environmental Requirements

Storage conditions:

  • Ambient temperature range of +50 °F to +104 °F (+10 °C to +40 °C)

  • Relative humidity range of 10% to 90%, non-condensing

  • Atmospheric pressure range of 500 hPa TO 1060 hPa

Storage space:

To store the coil, a storage space of 18.0 inch/45.7 cm (width) x 28.5 inch/72.4 cm (depth) x 16.8 inch/42.7 cm (height) is required.

Table 2. Dimensions
Coil 18.0 in x 28.5 in x 16.8 in45.7 cm x 72.4 cm x 42.7 cm
Phantom 4.75 in x 4.75 in x 9.5 in12.1 cm x 12.1 cm x 24.2 cm
Phantom Positioner 7.0 in x 7.0 in x 7.83 in17.8 cm x 17.8 cm x 19.9 cm
Table 3. Weight
Coil 16.5 lb7.5 kg
Phantom 11.0 lb5.0 kg
Phantom Positioner 3.3 lb1.5 kg
