3.0T Cardiac Coil Introduction

Product Identification and Shipping List

To identify the 3.0T Cardiac Coil, refer to the following illustrations.

Figure 1. Coil Label
Figure 2. Coil Label

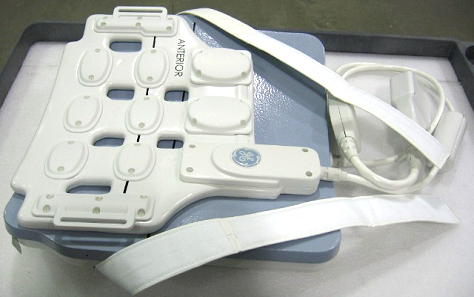

Figure 3 shows a picture of the 3.0T Cardiac Coil.

Figure 3. The 3.0T Cardiac Coil
Table 1. Shipping List
Description GE Part # Qty
Cardiac Coil, 3.0T 8Ch.U1-1004221
Packaging Set24146861
Operators Guide24128401
Packaging Instruction Label24146801
ICD Card, Anterior Assy.24146811
Carton Label, MCAT Product ID (Set of 3)24146791
Carton Label, CE9970012
Carton Label, Transportation & Storage9970022
Carton Label, USAI Logo9970032
Patient Pad, Upper Body2412551-011
Patient Pad, Head Rest2413170-011
Patient Pad, Lower Body2413171-011
Poly tubing, 24 x .003 mil9950255
Bubble-Wrap9950281
ICD Card Enclosure Envelope, Adhesive Backed9970424
Phantom2381683-31
ICD Card, Posterior Assy.24147371
Phantom Positioner, Posterior24127821
Phantom Positioner, Anterior24131021
Shipping Carton, Phantom Positioners24147001
Carton Label, Fragile9970111
Carton Label, Do Not Freeze9970101

Related Documentation

Operator’s Guide, GE Part Number 2412840

Environmental Requirements

Storage Requirements

Coil should be stored in the scanner room.

Dimensions

19.75” L x 17.25” W x 5.0” H (48.90 cm x 41.28 cm x 24.76cm)

Weight

15 lbs. (6.82kg)
