Discovery MR750 3.0T System Service Methods
5690009-2EN Revision 4
Object ID: 00000018WIA3065DE20GYZ
Topic ID: id_13107465 Version: 3.0
Date: Aug 29, 2019 1:57:19 AM

HD T/R Quad Extremity Coil Introduction

Overview

This document describes the HD T/R Quad Extremity Coil by Invivo, catalog M3335LP.

Product Identification and Shipping List

To identify the coil, refer to the coil label and illustration below.

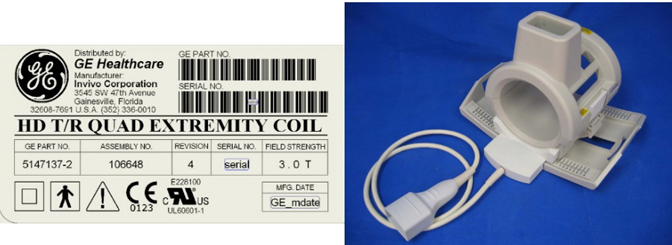

Figure 1. 3.0T Coil and Product Label for Curved Table

Table 1. T/R Quad Extremity Coil Shipping List
Description	GE Part Number	Supplier Part Number	GE Part Number	Supplier Part Number	Quantity
Description	1.5T		3.0T		Quantity
T/R Knee/Foot Coil	5147225-2	106714	5147137-2	106715	1
Knee Pad	2357819-3	14629	2357819-3	14629	1
Leg/Foot Support Pad	2357819-4	14627	2357819-4	14627	1
Foot Support Pad	2357819-5	14626	2357819-5	14626	1
Toe Pad	2357819-6	14628	2357819-6	14628	1
Operator Manual	5147225-4	500163	5147225-4	500163	1
Unified Phantom Positioner	5147225-7	—	5147225-7	—	1

Environmental Requirements

Storage requirements: Store the coil in an air-conditioned scan or equipment room. A storage space of 21.6 in x 17.7 in x 15.7 in (55 cm x 45 cm x 40 cm) is required.

Dimensions: 19 in (W) x 12 in (L) x 12 in (H) (48 cm x 30 cm x 36 cm)

Weight: 15 lb (6.8 kg)
