3.0T 8-channel high res brain array setup for MCQA test

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	15 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
18 cm Spherical TLT Phantom with Silicon Oil	1	-	2359877	GE
Phantom Positioner	1	-	2317112-3	Invivo

Table 3. Required conditions
Condition	Reference	Effectivity
No required conditions for this procedure.	-	-

Note:

If installing the coil for the first time on a system, see Auto Coil Installation.

Note:
If installing the coil for the first time on a system, refer to Auto Coil Install.

Attach the base plate with 3.0T HD 8-Channel High Res Brain Array Coil to the cradle in the same position on the cradle as the standard head coil. Note the serial number of the coil.
Slide the coil back to allow access to the head holder.

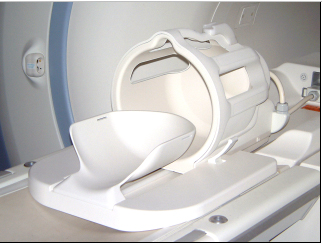

Figure 1. Coil Slid Back to Access Head Holder
Place the phantom ring on the head holder. (The edge of the ring that goes toward the magnet has edges that overhang the head holder to secure the ring in position.)

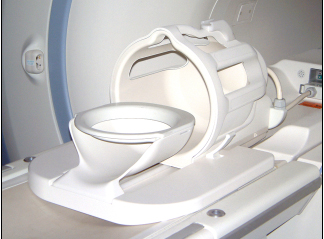

Figure 2. Phantom Ring Placed on Head Holder
Place the head TLT sphere on the phantom ring.

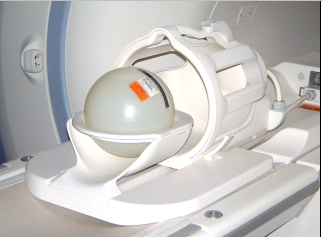

Figure 3. Head TLT Sphere Placed on Phantom Ring
Slide the coil all the way forward (away from the magnet) on the baseplate, and set the locks.

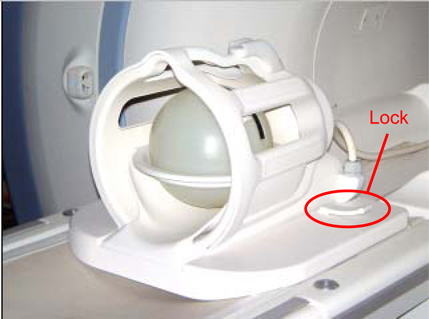

Figure 4. Sphere Aligned with Coil
Establish an axial landmark on the line on top of the coil, and Advance to Scan.
Proceed to Multi-Coil Quality Assurance Tool.

No finalization steps.
