3.0T HD 3-Channel Shoulder Coil Setup for MCQA Test

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable15 minutesNot Applicable
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Phantom Positioner1-

2375136-3

-
3.0T Head TLT Sphere (pink)1-

2359877

-
Table 3. Required conditions
ConditionReferenceEffectivity

The coil configuration name HD Shoulder must be installed to run this tool.

--

About this task

Follow this process to prepare for the automated SNR test using the 3.0T HD 3-Channel Shoulder Coil by GE/USAI, catalog M3335LR.

Note:

If installing the coil for the first time on a system, refer to Auto Coil Installation.

Procedure

  1. Place the phantom positioner on the table.

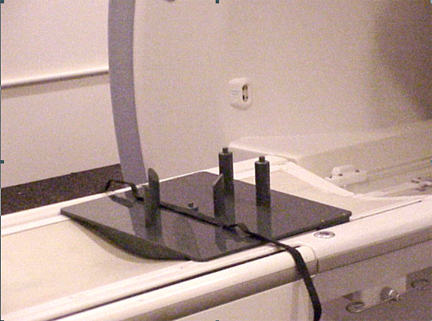

    Figure 1. Placement of Phantom Positioner
  2. Insert the phantom into the coil, then guide the coil onto the phantom positioner pins (the holes in the coil frame will accept the positioner pins). Confirm the coil cable is connected to the system.

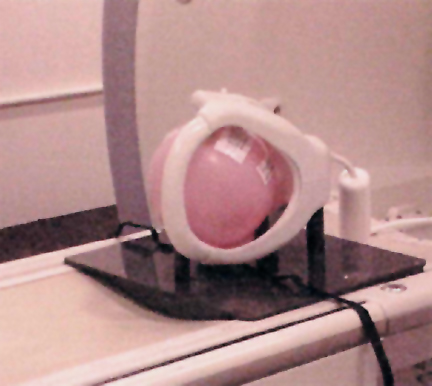

    Figure 2. Phantom in Coil on Positioner
  3. Landmark on the coil crosshairs.

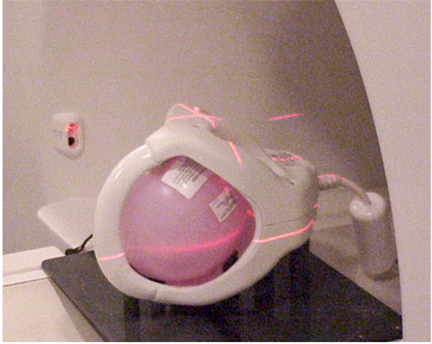

    Figure 3. Landmarking on Coil
  4. Proceed to the Multi-Coil Quality Assurance Tool procedure.

Finalization

No finalization steps.
