3.0T HD 8-Channel Torso Coil Introduction

Overview

This document is an introduction for the 3.0T HD 8-Channel Torso Coil, catalog M3335LN.

Product Identification and Shipping List

To identify the 3.0T HD 8-Channel Torso Coil, refer to the coil label (see the following illustrations).

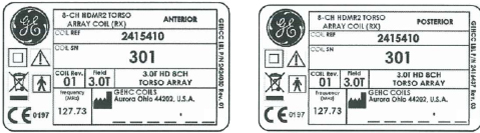

Figure 1. Coil Label

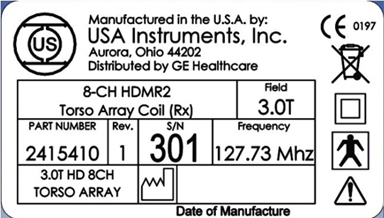

Figure 2. Coil Label

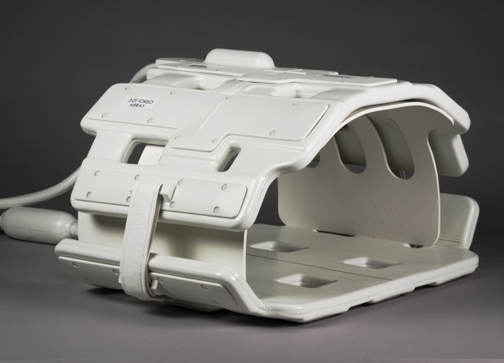

Figure 3 shows a picture of the 3.0T HD 8-Channel Torso Coil.

Figure 3. 3.0T HD 8-Channel Torso Coil
Table 1. Shipping List
Box # Description GE Part # Qty
1Coil24154101
1Operators Guide24174061
2Patient Liner2381683-51
2Patient Pad24169591
3Phantom Positioner2381683-41

Related Documentation

GE Healthcare 3.0T HD 8-Channel Torso Array coil Operator Manual, 2417406

Environmental Requirements

Storage Requirements

Store the coil in an air-conditioned scan room or equipment room.

Dimensions

17” L x 20” W x 16” H (43.0 cm L x 52.0 cm W x 40.0 cm H)

Weight

15 lbs (6.8 Kg)

Replaceable Accessories

Table 2. Replaceable Accessories
Description GE Part #
Table Pad2416959
Patient Liner2381683-5
