3.0T HD Breast Array Coil Introduction

Product Identification and Shipping List

To identify the 3.0T HD Breast Array Coil, refer to the coil label (see the following illustrations).

Figure 1. 3.0T HD Breast Array Coil Serial Label
Figure 2. Coil Label

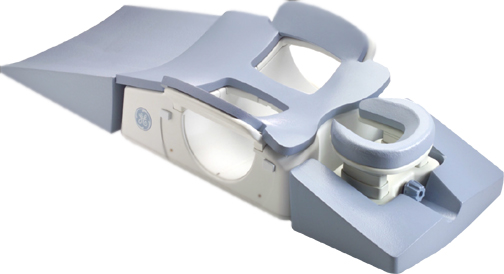

Figure 3. 3.0T HD Breast Array Coil with Headrest and Pads

Shipping Contents / Packaging List

The coil ships in multiple boxes.

Table 1. Box 1 Contents
Part Name Part Number Qty.
3.0T HD Breast Array24155441
Headrest Assembly24079451
Operator Manual24164721
Lateral Biopsy Assembly24080052
Breast Chamber Cover24143411
Plate, Lateral Compression24145432
Plate, Medial Compression24145442
Table 2. Box 2 Contents
Part Name Part Number Qty.
Patient Pad24172701
Transition Pad24172711
U-shaped Headrest Pad24085021
Armrest Pad24085041
Footrest Pad24121511
Breast Chamber Cover Pad24085031
Compression Pad24172694
Table 3. Box 3 (Only Provided When The Coil With Biopsy Option Is Ordered)
Part Name Part Number Qty.
Plate, Sterilized Lateral Biopsy24143462
Plate, Sterilized Medial Biopsy24143422

Related Documentation

Operator’s Guide, GE Part Number 2416472.

Signa HD 3.0T Class A Service Methods CDROM

Environmental Requirements

Storage Requirements

Coil should be stored in the scanner room.

Dimensions

521mm L X 541mm W X 244mm H

Weight

15.8 lbs. (7.2 kg) excluding biopsy device.
