SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30A62E40GYZ
Topic ID: id_2019783 Version: 1.8
Date: Apr 23, 2020 8:52:12 PM

Removing the dockable table motor

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Required conditions
The motor and EM clutch assembly is removed from the table.

Procedure

Mark the position of the motor in the motor and EM clutch assembly. This mark will be the starting point for belt tension.

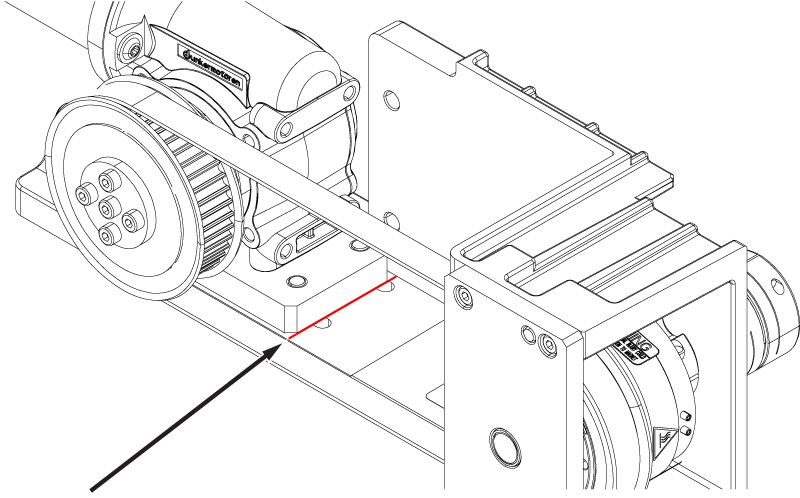

Figure 1. Motor position mark
Remove the belt tension screw and nut from the motor and EM clutch assembly.

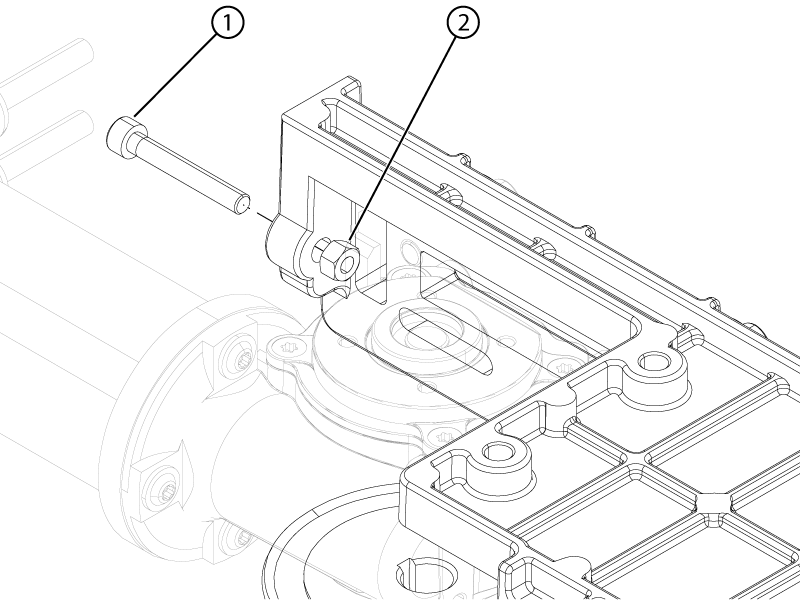

Figure 2. Motor belt tension hardware
1 Belt tension screw
2 Belt tension nut
Remove the four screws and four washers securing the motor to the motor and clutch assembly.

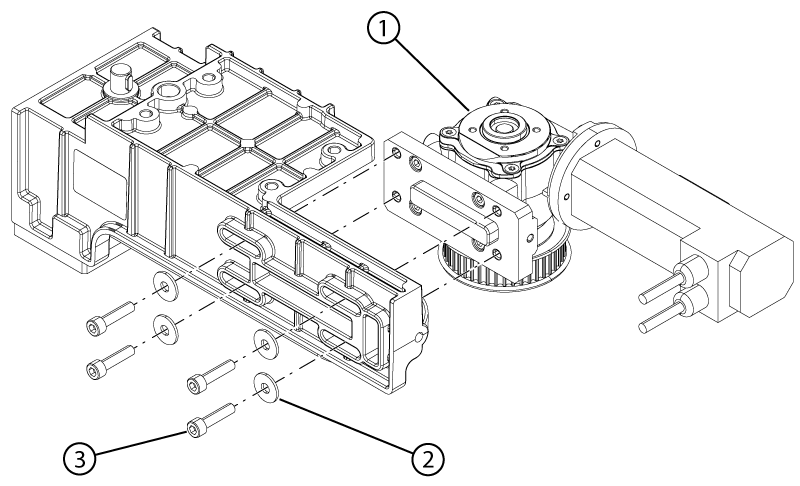

Figure 3. Motor hardware
1 Motor
2 Washer
3 Screw
Remove the belt from the motor pulley.
Remove the motor from the motor and EM clutch assembly.
Remove the four screws securing the clutch cover plate to the motor and clutch assembly.

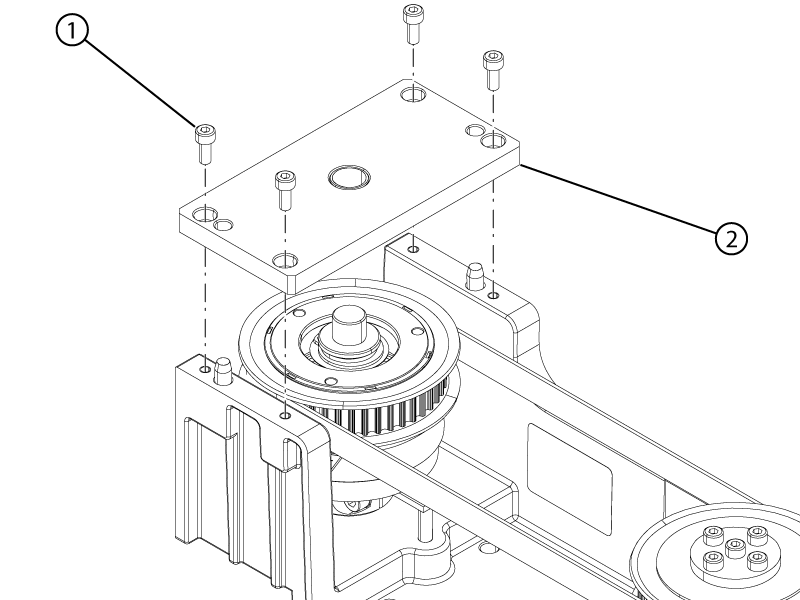

Figure 4. EM clutch cover
1 EM cover screw
2 EM cover
Remove the clutch cover plate.
Remove the drive belt and discard it appropriately.
