Installing the cradle flipper assembly

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	10 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Large Set	1	5112581	-


Consumables
Item	Quantity	Part number	Manufacturer
Loctite #243	As required	5415261-3	-

Procedure

Install the new flipper switch in the tabletop, sliding the bottom of the assembly through the table.
Apply Loctite #243 to the four screws.
Install the four screws with washers securing the flipper assembly to the tabletop.

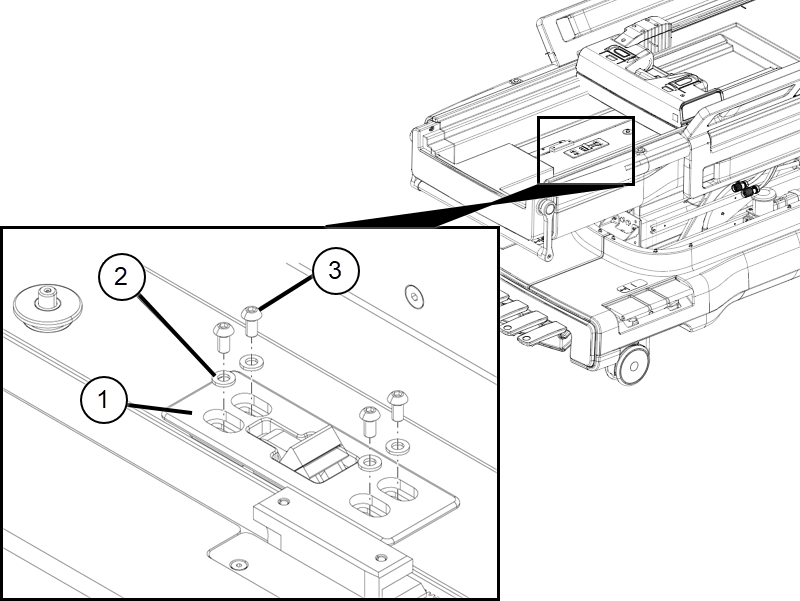

Figure 1. Flipper tabletop hardware
1 Flipper assembly
2 Washer
3 Screw

1	Flipper assembly
2	Washer
3	Screw
