Setting up total digital imaging (TDI) posterior array (PA) - upper

Set up the total digital imaging (TDI) of the upper posterior array (PA) for the Multi-Coil Quality Assurance (MCQA) check.

Procedure

  1. Put the flat filler panel on the table.
    Figure 1. Flat filler panel
  2. Press the Alignment Light button.
  3. Move the cradle so the alignment light shows on the TDI PA coil front end line on both sides of the cradle.
    Note: There are lines on both sides of the cradle.

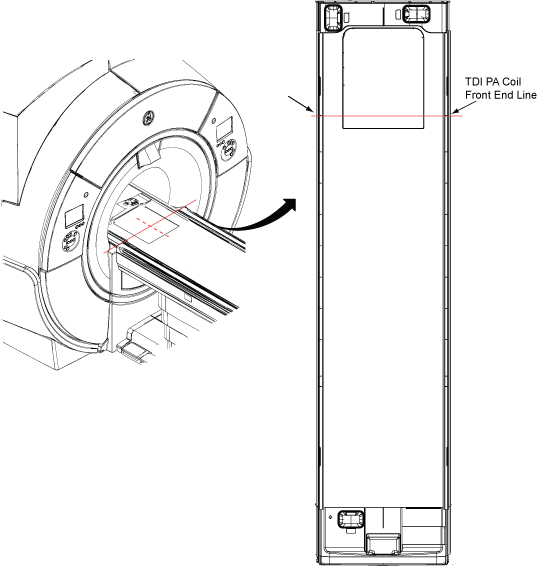

    Figure 2. Flat filler panel alignment
  4. Do the following steps:
    1. Place the two TL unified phantoms and the spacer on the table.
    2. Place PA phantom positioner over the two TL unified phantoms.

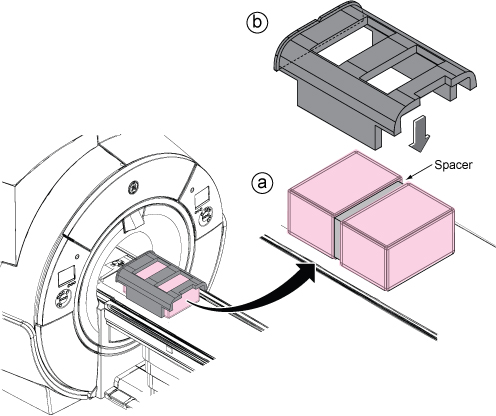

    Figure 3. Phantom setup
  5. Move the phantom with positioner so that alignment line and alignment dent of the positioner are aligned with the beams.

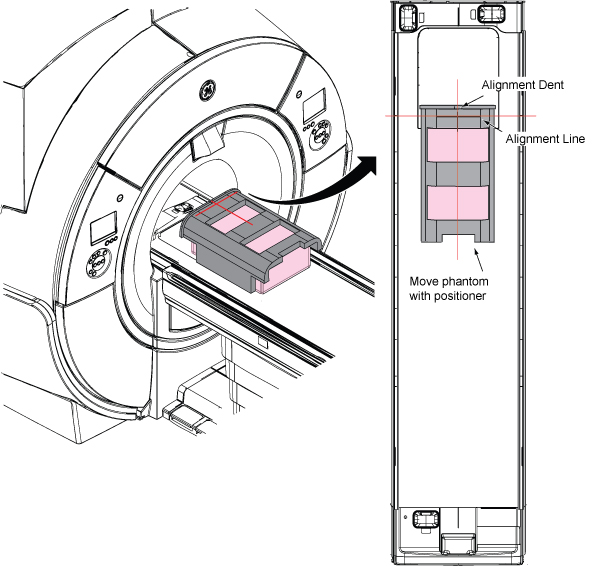

    Figure 4. Phantom alignment
  6. Press Landmark and then press Advance to Scan.
  7. Run the MCQA check.
    Note: Select 3.0T_32Ch_TDI_PA_Upper (or equivalent platform option) in the Current Coil field.

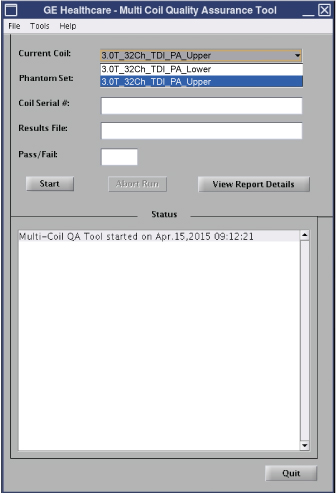

    Figure 5. MCQA tool menu
