SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30936C40GYZ
Topic ID: id_2019422 Version: 2.3
Date: Apr 23, 2020 8:51:54 PM

Installing the tabletop rear cover

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-

Procedure

Install the rear cover onto the tabletop.

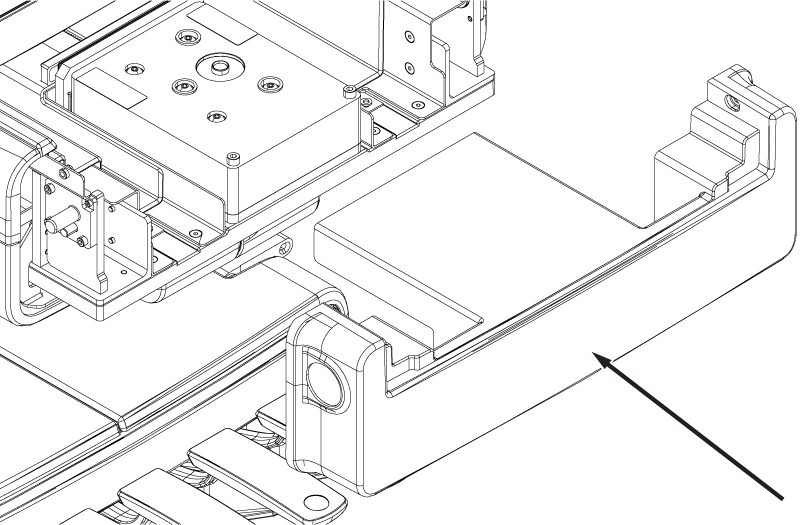

Figure 1. Tabletop rear cover
Install the four screws and four washers securing the tabletop rear cover to the tabletop.

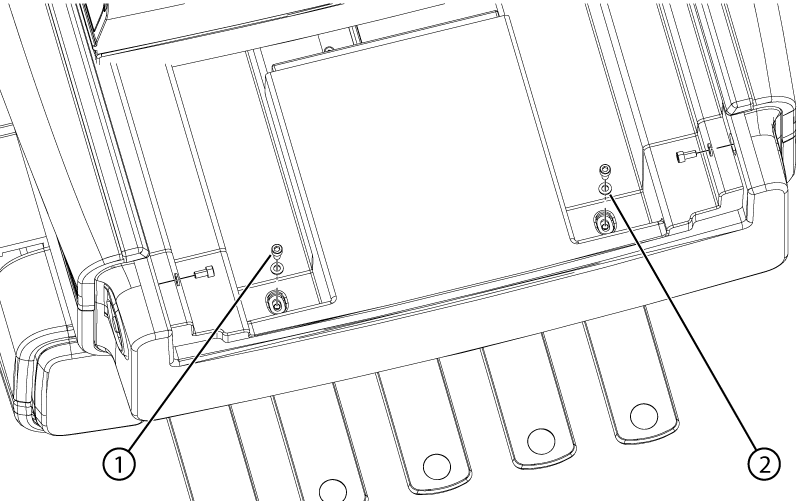

Figure 2. Tabletop rear cover hardware
1 Screw
2 Washer
Make sure the side screws are tightened until the rear cover vertical surface is aligned with the tabletop vertical surface.

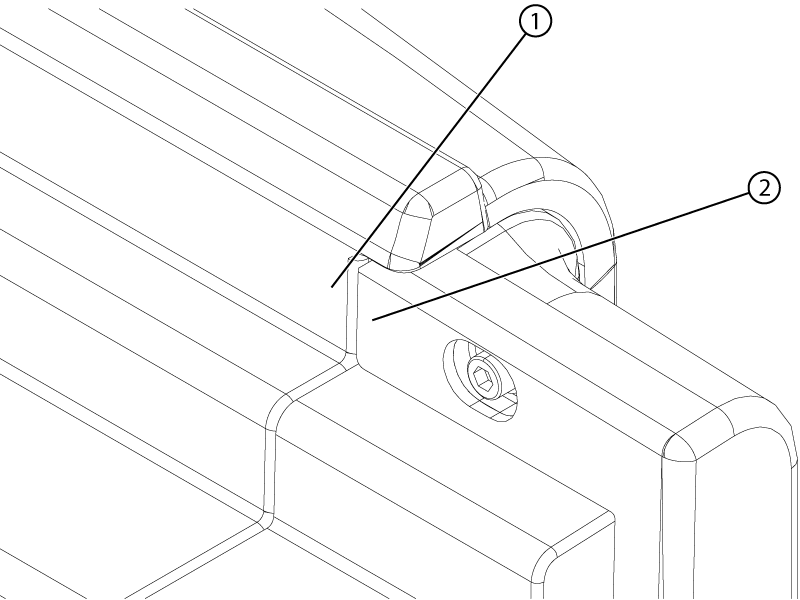

Figure 3. Tabletop rear cover side screw
1 Tabletop vertical surface
2 Rear cover vertical surface

1	Screw
2	Washer

1	Tabletop vertical surface
2	Rear cover vertical surface
