SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30812E40GYZ
Topic ID: id_2019732 Version: 1.6
Date: Apr 23, 2020 8:52:08 PM

Installing the handle hinge

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Consumables
Item	Quantity	Part number	Manufacturer
Loctite #243	As needed	5415261-3	-

Procedure

Install the handle hinge onto the tabletop.

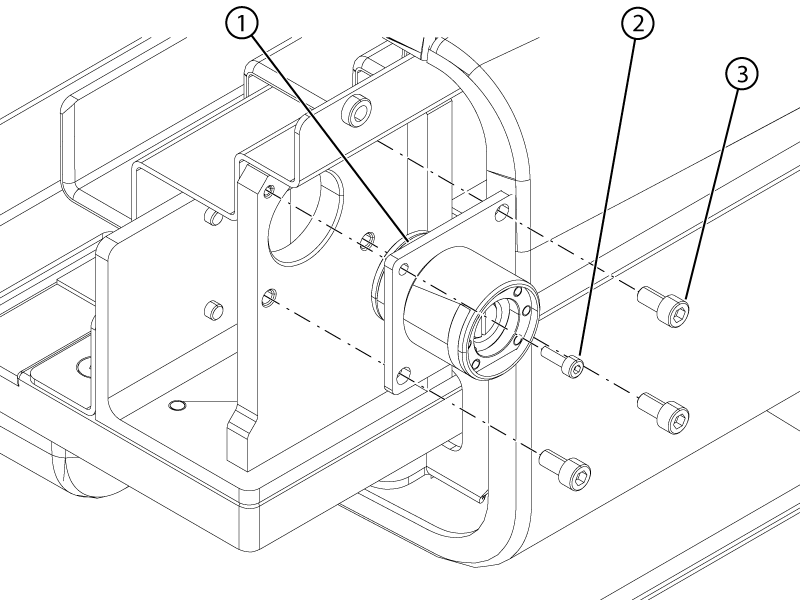

Figure 1. Handle hinge
1 Handle hinge
2 M4 screw
3 M6 screw
Apply Loctite #243 to the three M6 and one M4 screw.
Install the three M6 and one M4 screw securing the handle hinge to the tabletop.
Make sure the flats of the handle hinge nutplate are horizontal and the hinge is in the locked position. Rotate the hinge body as required if it is not in the required position.

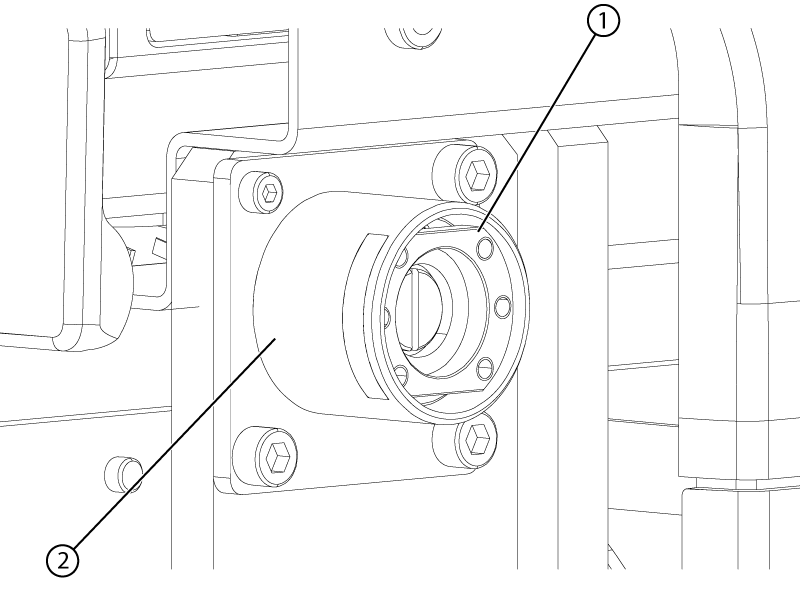

Figure 2. Handle hinge position
1 Nut plate
2 Hinge body
Discard the six shoulder screws previously securing the handle arm to the handle hinge. Use the screws provided with the FRU kit to install the handle arm to the hinge.
