PAC Manual Test

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	10 minutes	Not Applicable

This procedure tests the data paths in both directions from the PAC to the STIF

Go to the Service Desktop and start the Common Service Browser then go to the Diagnostic Tab and select under Hardware Location, Magnet Room, PAC Manual Tests. See Figure 1.

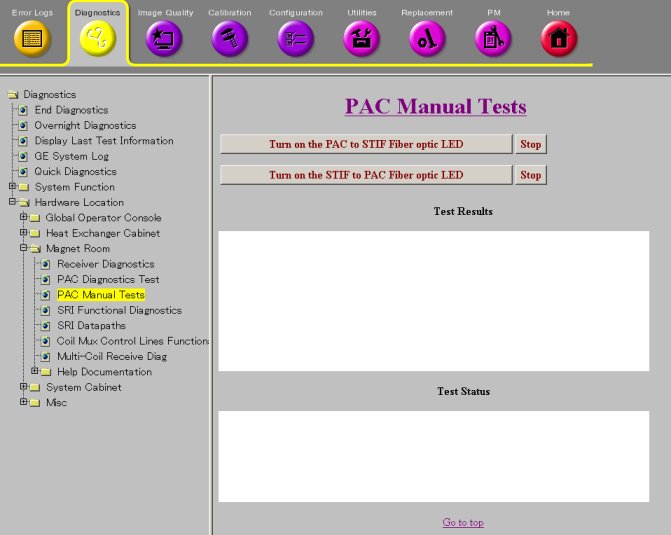

Figure 1. PAC Manual Tests
The PAC to STIF LED test causes the PAC module to turn on the fiber optic driver LED that is normally used to send serial messages from the PAC module to the STIF board in the CAM Lite chassis. The test allows you to visually inspect the PAC serial transmitter and the fiber optic cables that connect to it.
1. Start the test by clicking on the Turn on the PAC to STIF Fiber optic LED button.
2. Disconnect the output fiber cable on the PAC to inspect the LED. If it is ON, then the transmitter is working.

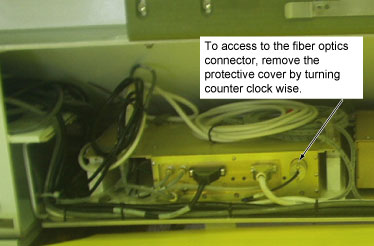

  Figure 2. PAC
3. Reconnect the PAC fiber cable.
4. Click on the Stop button to stop the test.
The STIF to PAC LED test causes the CAM Lite chassis to turn on the PAC serial port transmitter on the STIF board. This test allows you to visually inspect the STIF serial transmitter and fiber optic cables that connect to it.
1. Disconnect the PAC output fiber cable on the STIF. STIF is located in the Rear of System Cabinet.

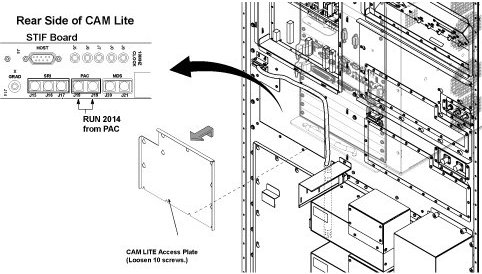

  Figure 3. STIF Board
2. Click on the Turn on the STIF to PAC Fiber Optic LED button to start the test.
3. Inspect the LED. If you can see it then the system is working correctly.
4. Stop the test by clicking on the Stop button.
5. Reconnect the PAC Fiber cable.

No finalization steps.
