Removing the primary latch assembly

Disconnect and remove the primary latch assembly from the dockable table.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-5 minutes-
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set15113258-

Procedure

  1. Remove the two screws and two washers securing the cradle to tabletop.

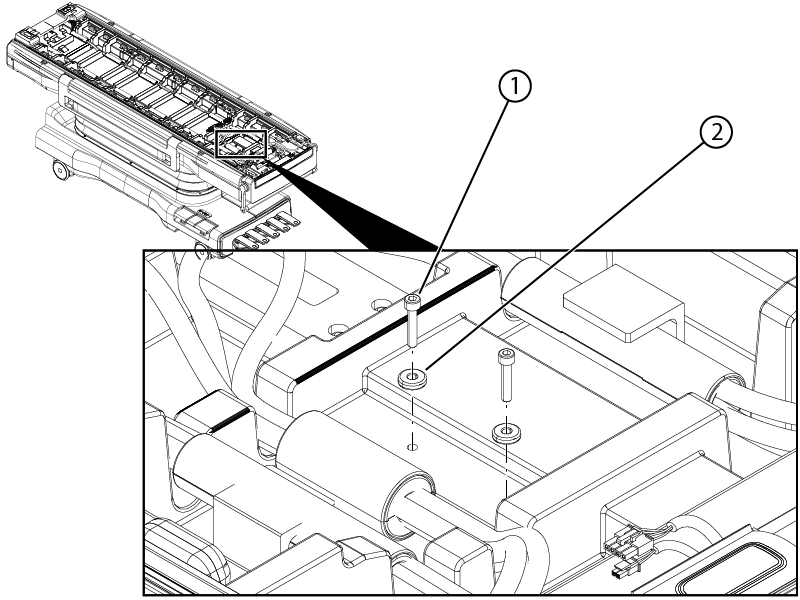

    Figure 1. Cradle hardware
    1Screw
    2Washer
  2. Raise the bore end of the cradle and place a foam block or similar item under the cradle to allow access to the primary latch.

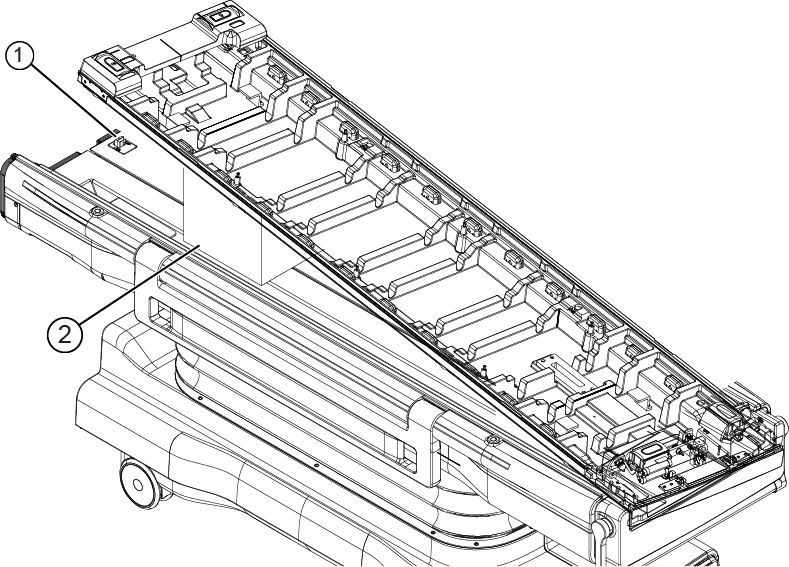

    Figure 2. Raise the cradle
    1Primary latch
    2Support block
  3. Remove the two screws securing the primary latch cover.
    Figure 3. Primary latch cover screws
  4. Remove the primary latch cover.
  5. From underneath the primary latch housing, remove the four screws securing the primary latch housing.
    Figure 4. Primary latch
    1Latch pin
    2Primary latch housing
  6. Loosen the coarse adjustment setscrew to detach the adjustment cable from the coarse adjustment block.

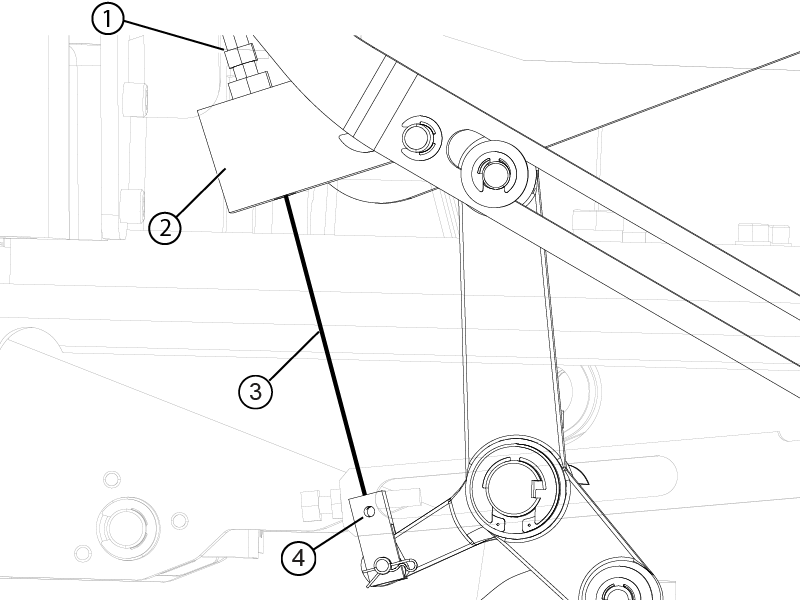

    Figure 5. Primary pin height adjusters
    1Fine adjustment screw
    2Pivot block
    3Adjustment cable
    4Coarse adjustment block setscrew
  7. Thread the adjustment cable back out through the fine adjustment screw and pivot block.
  8. Remove the primary latch housing and cable through the top of the latch opening.
