Lowering the dockable table cradle

Procedure

Remove the support and lower the cradle.

Figure 1. Lower the cradle
1 Primary latch
2 Support block
Install the two washers and two screws securing the cradle to the tabletop.

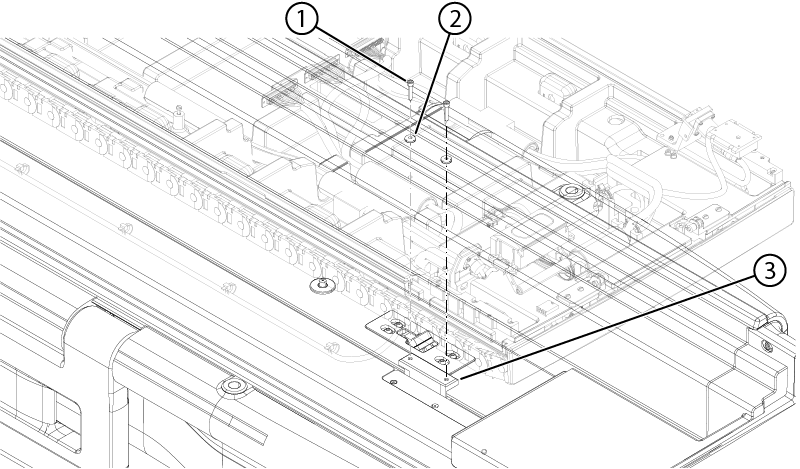

Figure 2. Cradle hardware alignment
1 Screw
2 Washer
3 Rigibelt mounting block
Dock the table.
Move the cradle into the bore until the primary latch assembly is exposed.

1	Primary latch
2	Support block

1	Screw
2	Washer
3	Rigibelt mounting block
