SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30452E40GYZ
Topic ID: id_2019770 Version: 1.5
Date: Apr 23, 2020 8:52:11 PM

Removing the dockable table motor coupler

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Required conditions
The motor and ElectroMagnetic (EM) clutch assembly is removed from the table.

Procedure

Loosen the screw securing the motor coupler to the EM clutch drive shaft.

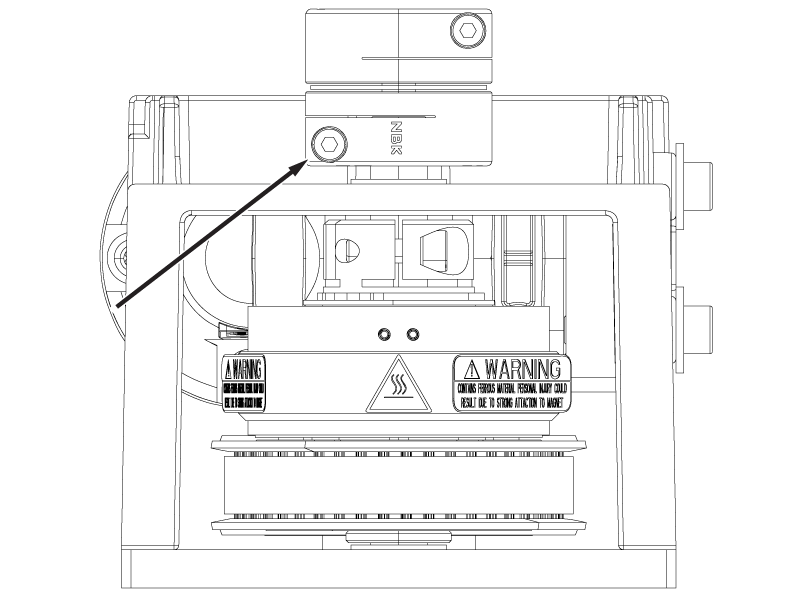

Figure 1. Motor coupler screw
Remove the motor coupler from the EM clutch shaft.
