SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30325E40GYZ
Topic ID: id_2019857 Version: 1.10
Date: Apr 23, 2020 8:52:14 PM

Installing the dockable table motor coupler

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-

Procedure

Make sure the key is installed on the ElectroMagnetic (EM) clutch shaft.

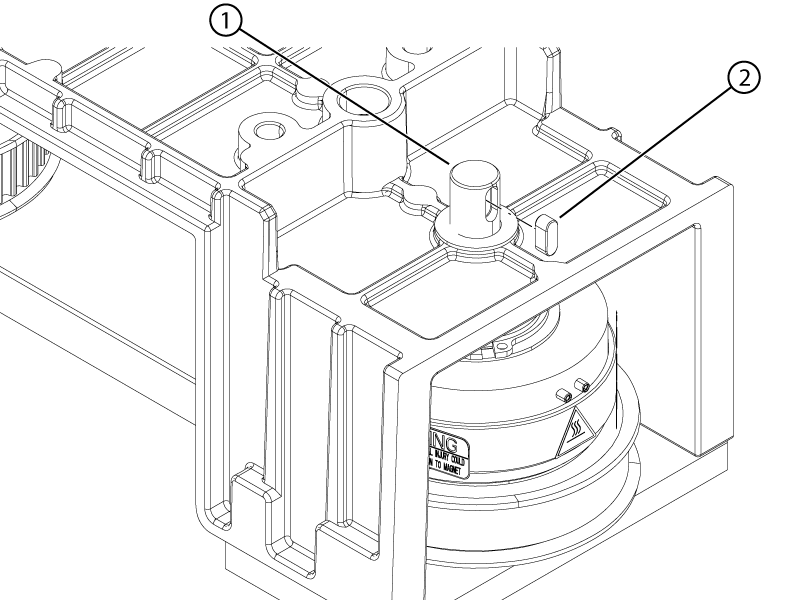

Figure 1. EM clutch shaft key
1 EM clutch shaft
2 Key
Install the coupler onto the rigibelt drive shaft.

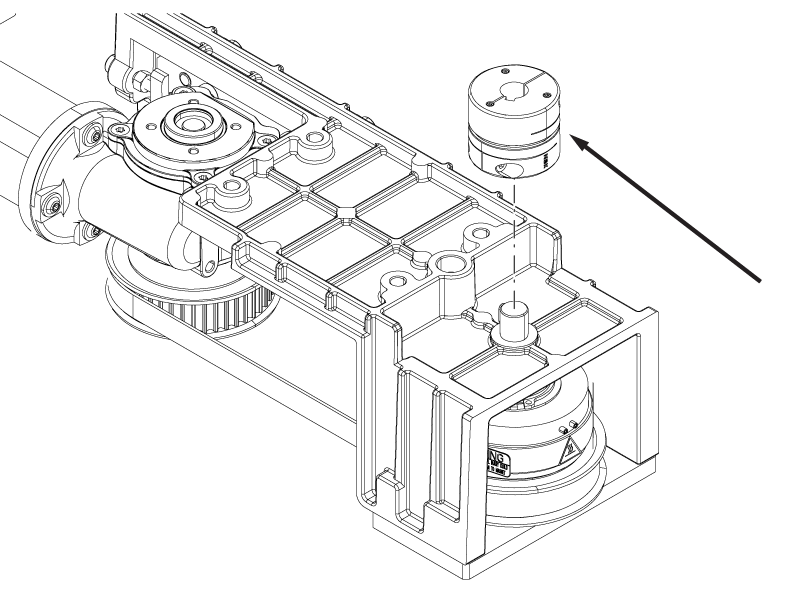

Figure 2. Motor coupler
Tighten the screw securing the motor coupler to the EM clutch shaft.

Figure 3. Motor coupler screw
Make sure the gap between the EM clutch and the motor and clutch assembly housing is 4.2 ± 0.5 mm.

Note: The gap should be within specification when the clutch is pushed down completely.

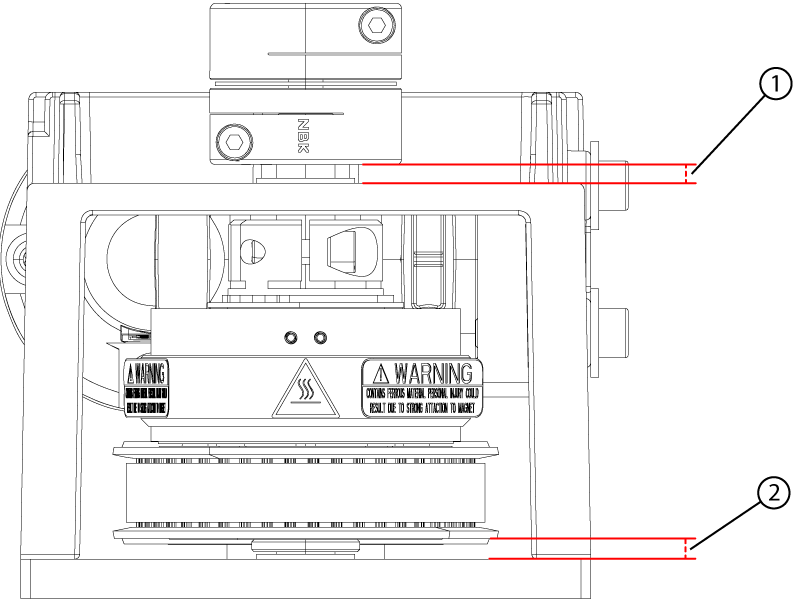

Figure 4. Motor coupler and EM clutch gaps
1 Motor coupler gap
2 EM clutch gap
Make sure the gap between the motor coupler and the motor and clutch assembly housing is 3.8 ± 0.5 mm. Loosen the coupler bottom screw and adjust the position of the coupler on the clutch shaft, if required; then re-tighten the screw.
