SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30884450GYZ
Topic ID: id_2022061 Version: 1.12
Date: Oct 11, 2021 6:31:30 PM

Removing table undock mechanism components

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	10 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Required conditions
The table left-hand base side cover is removed.

Procedure

Undock the patient table and remove it from the magnet room.
Make sure the table lock safety bar is lowered and the weight of the table is resting on it.

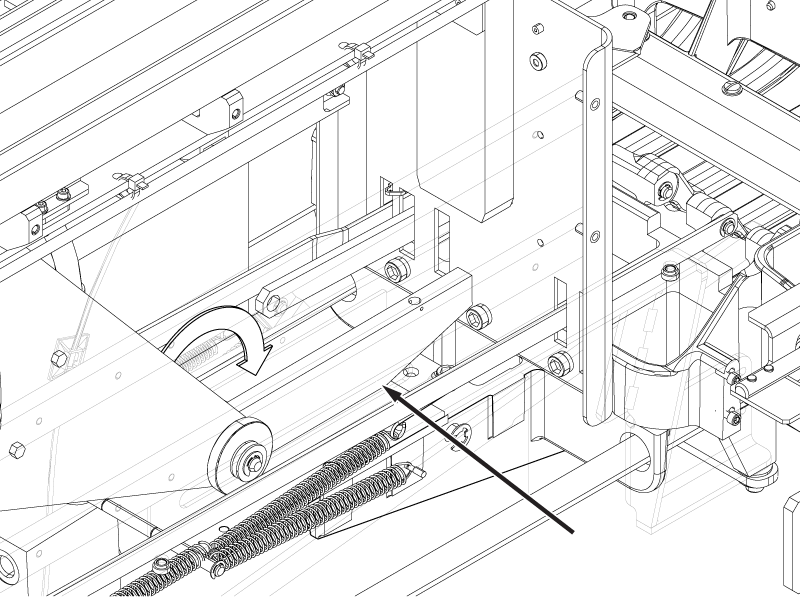

Figure 1. Lock safety bar down
Locate the link assembly (shown below) behind the left-hand lower base cover. Make sure the link bar and lever move freely.

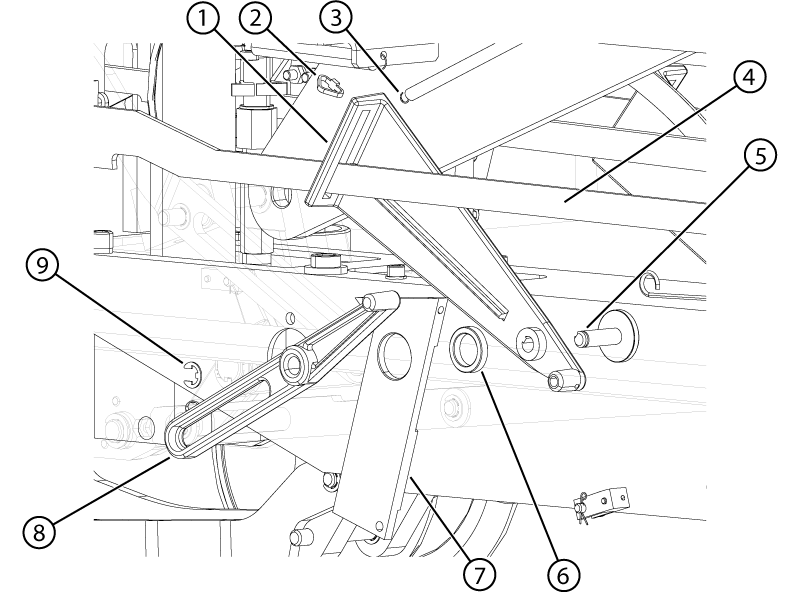

Figure 2. Undock mechanism exploded
1 Lever
2 Cable tie
3 Spring
4 Link bar
5 Pin
6 Bushing
7 Reel
8 Plastic link lever
9 E-clip
Using a small screwdriver, remove the e-clip shown above. There are four parts to remove from the pin.
1. Maneuver the plastic link lever off both the guide and the pin.
2. Slide the reel off the pin, attached to a spring (it will tend to pull away after it is removed).
3. Slide the bushing off the pin.
Before removing the lever, locate and remove the e-clip that holds the link bar to the pedal at the rear of the table with a small screwdriver.

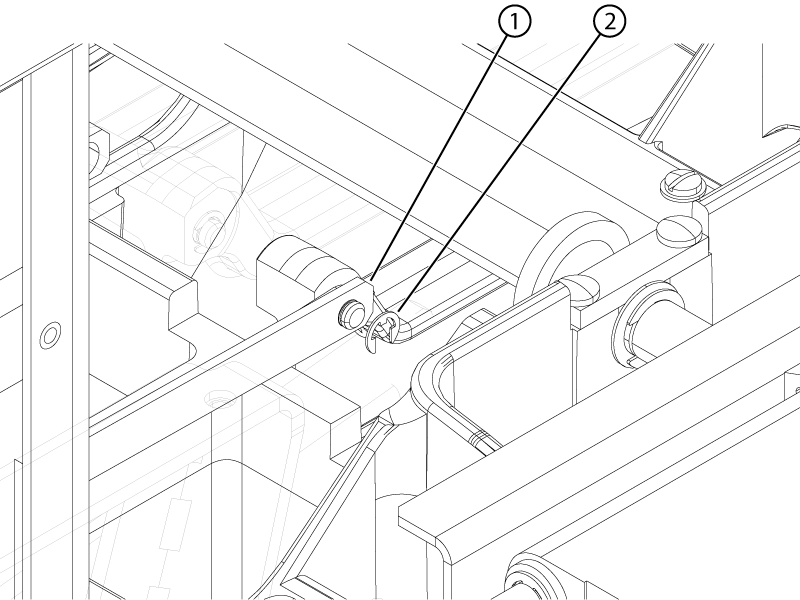

Figure 3. Link bar handle-end e-clip
1 Link bar
2 E-clip
Remove the three screws and three washers securing the rubber pedal stop to the table base.

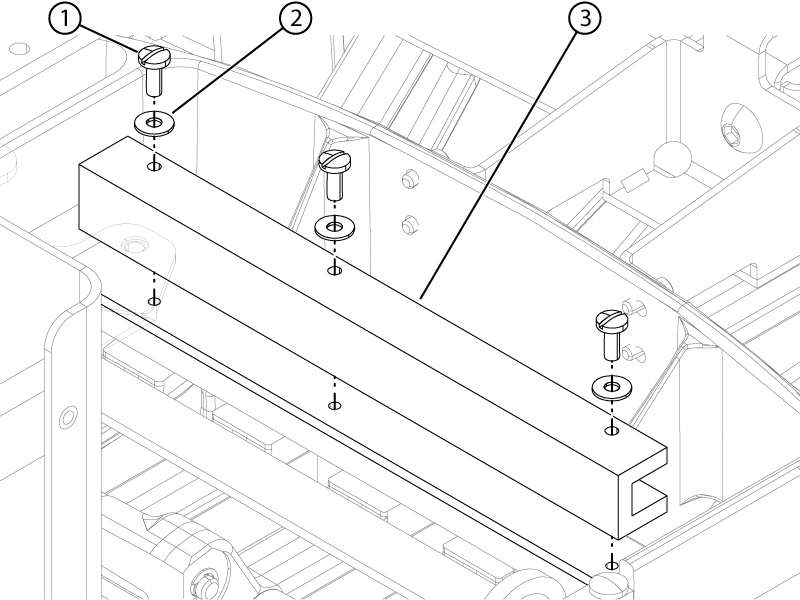

Figure 4. Rubber pedal stop
1 Screw
2 Washer
3 Rubber pedal stop
Remove the rubber pedal stop.
Prior to replacing the old link bar, the undock hook block will need to be removed for reuse with the new link bar. Remove the two screws holding the undock hook block to the old link bar.

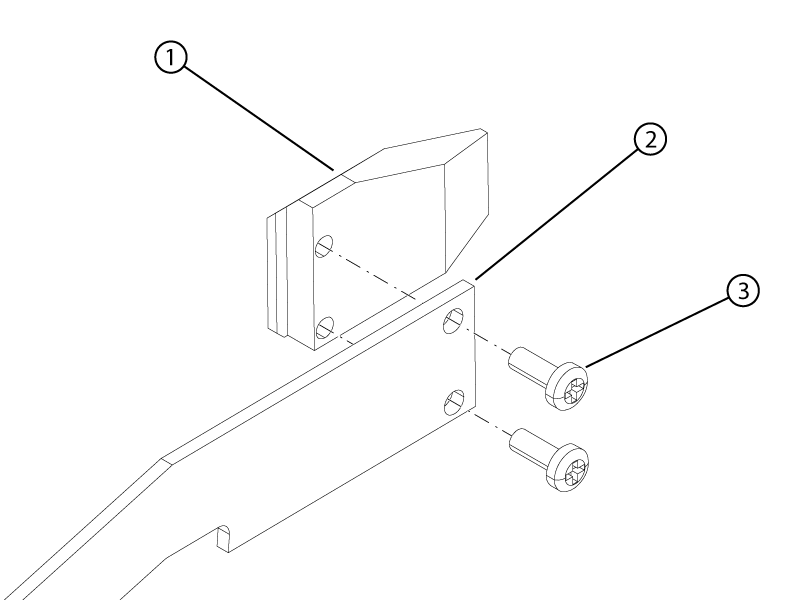

Figure 5. Undock hook block
1 Block
2 Link bar
3 Screw
After the undock hook block is removed, slide the link bar off the lever.

Note: Slide the link bar under the table frame.

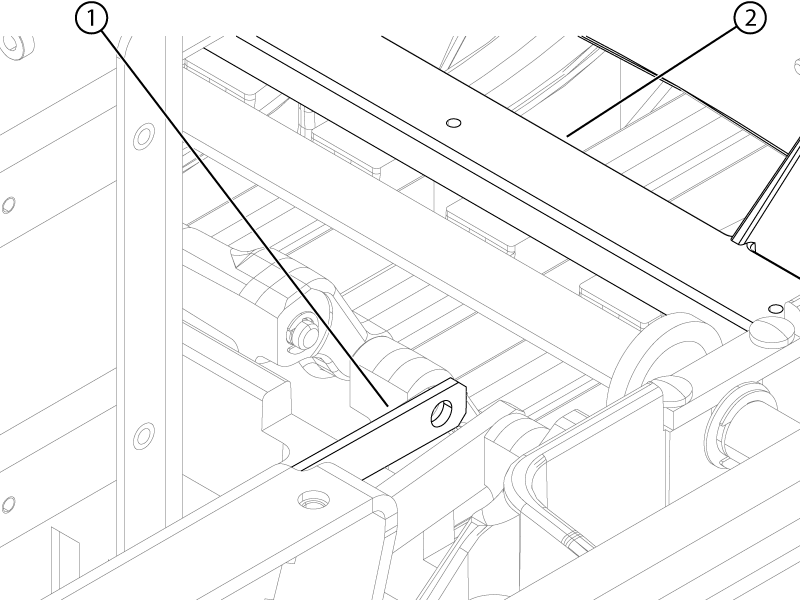

Figure 6. Link bar
1 Link bar
2 Table frame
