Installs the rocker clamp, rod link connector, and shaft rocker onto the patient table.
Prerequisites
| Personnel requirements |
|---|
| Required persons | Preliminary requirements | Procedure | Finalization |
|---|
| 1 | - | 10 minutes | - |
| Tools and test equipment |
|---|
| Item | Quantity | Part number | Manufacturer |
|---|
| Nonmagnetic Titanium Service Tool Kit, Small Set | 1 | 5113258 | - |
Procedure
- If the rocker clamp was removed, install the two E-clips securing it to the table base.

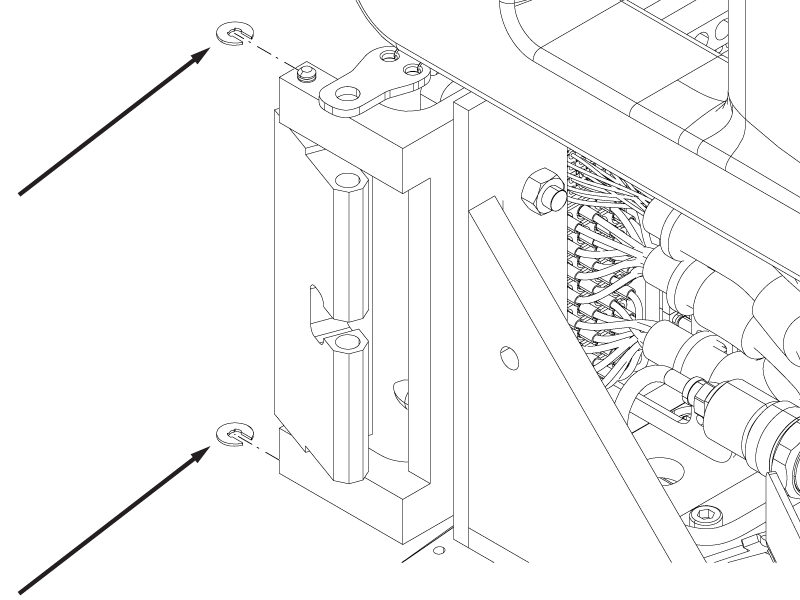

Figure 1. Rocker clamp E-clips
- Install the front portion of the rod link connector.
- Install the the shaft rocker, spring adapter plate, and the four E-clips securing the shaft rocker to the front of the link rod connector.

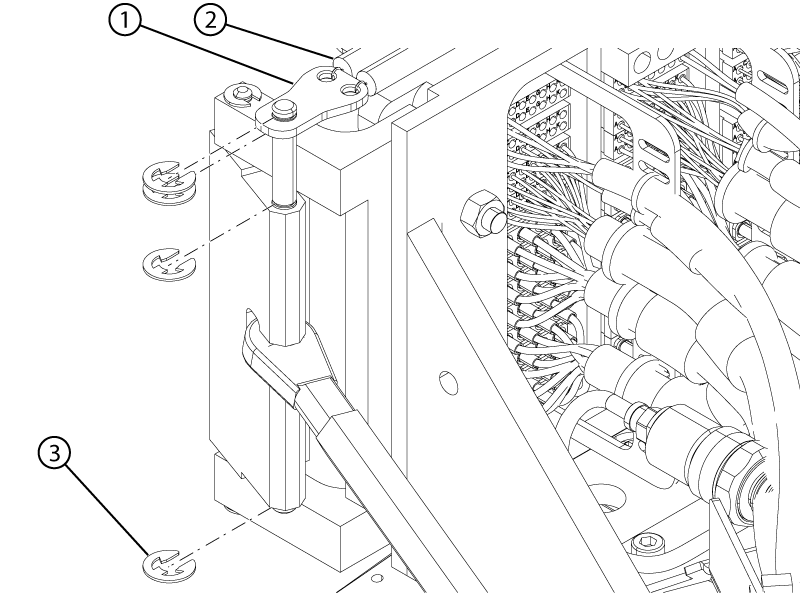

Figure 2. Shaft rocker E-clips
| 1 | Spring adapter plate |
| 2 | Spring |
| 3 | E-clip |
- Connect the two springs to the spring adapter plate.
- Install the back portion of the rod link connector and the E-clip.

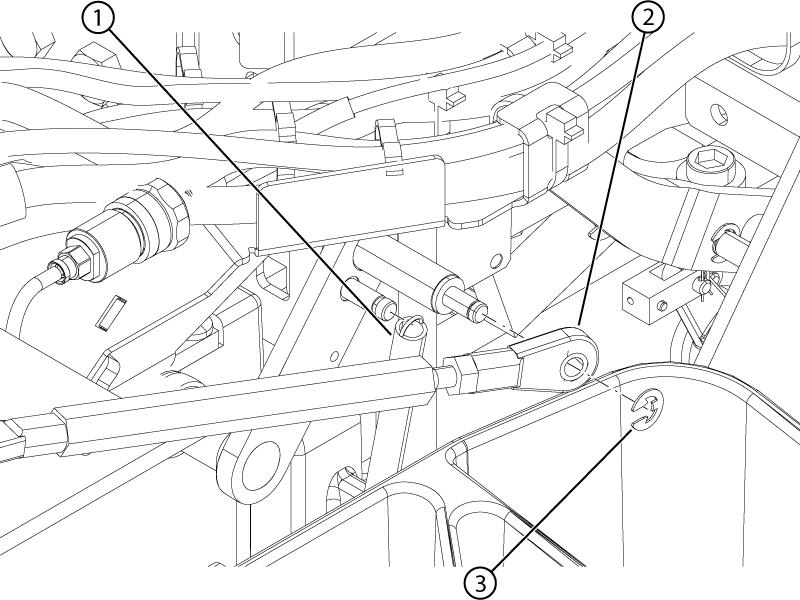

Figure 3. Rod link connector back end
| 1 | Spring |
| 2 | Rod link connector |
| 3 | E-clip |
- Install the spring on the rod link connector.
- Raise the table so the weight is off of the lock bar. Raise the table lock safety bar.
