Control Board for SSSA Replacement

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable30 minutes15 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Standard Tool1---
Table 3. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
Control Board for SSSA 1-

Refer to FRU Manual

-
Table 4. Safety
Table 5. Required conditions
ConditionReferenceEffectivity

System Power must be turned OFF. Refer to ISC PDU Main Breaker LOTO Procedure.

--

Procedure

  1. Open ISC Covers.
  2. Perform the following steps.
    1. Disconnect two connectors.
    2. Remove six screws.
    3. Remove Leak sensor assy.
    Figure 1. Remove Leak Sensor
  3. Perform the following steps.
    1. Disconnect GP4 Cable at the front panel of the board.
    2. Loosen two screws.
    3. Open Extract levers.
    4. Withdraw control board.
    Note:

    The control board can be removed/inserted to the socket by lifting up a little.

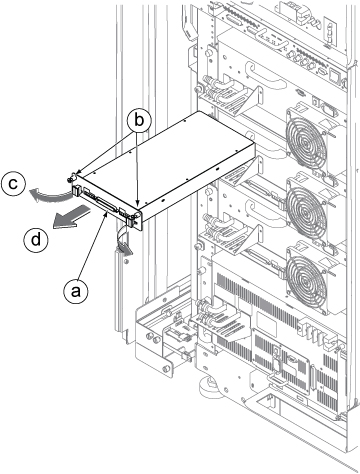

    Figure 2. control board
  4. Restore control board for SSSA by reverse order.
  5. Connect GP4 Cable at the front panel of the board.
  6. Restore the cabinet leak sensor assy.
  7. Restore ISC.

Finalization

  1. Restore the Power of ISC PDU Main Breaker. Refer to Removing LOTO - ISC.
  2. To adjust DC Offsets, refer to DC Offset Adjustment.
  3. Perform [TPS Reset].
  4. Perform DQA Tool.
