• SIGNA™ Hero 3.0T Service Methods
  • 5852800-8EN Revision 1.0
  • Object ID: 00000018WIA307DC230GYZ
  • Topic ID: id_15667028 Version: 1.6
  • Date: Jul 13, 2021 4:27:36 PM

Top FAN Assy Replacement

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1Not Applicable30 minutes15 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Ladder1---
Standard Tool1---
Table 3. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
Top FAN Assy 1-

Refer to FRU Manual

-
Table 4. Safety
Table 5. Required conditions
ConditionReferenceEffectivity

PDU and Service Disconnect Panel (or Main Disconnect Panel) must be turned OFF. Refer to LOTO for MDP(Main Disconnect Panel) or Facility PDU .

--

Procedure

  1. Remove ISC connector cover by removing 4 screws.

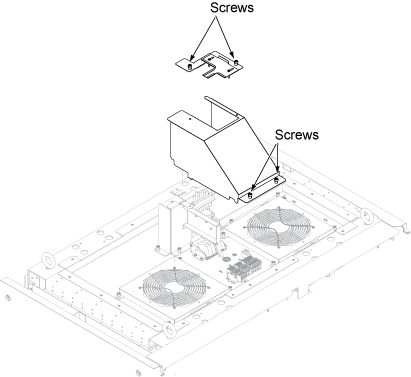

    Figure 1. ISC Top Connector cover
  2. Perform the following steps.
    1. Disconnect FAN Power cables from Terminal.
    2. Loosen 4 screws from Top FAN.

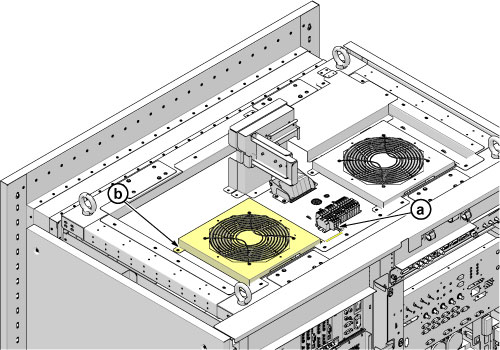

    Figure 2. Disconnect power
  3. Remove FAN Assy.

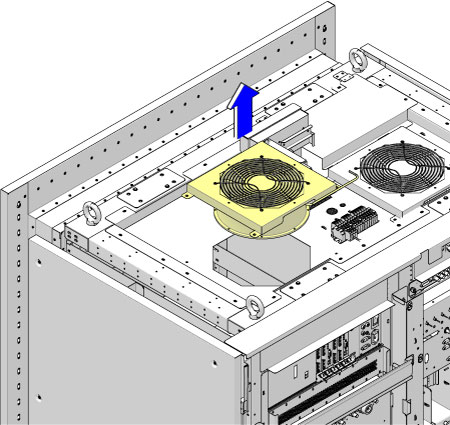

    Figure 3. FAN Assy Removal
  4. Restore the new FAN Assy by reverse order of removal.

Finalization

  1. Restore the Power. Refer to Removing LOTO - MDP.
  2. Check that the Top Fan Assy is operating normally.
  3. Perform check scan.
