SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30A1A280GYZ
Topic ID: id_2033768 Version: 1.3
Date: Sep 27, 2021 5:51:56 PM

Replacing the strain relief

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Replacement parts
Item	Quantity	Part number	Manufacturer
Cradle Strain Relief Block	1	5866710	-


Required conditions
The handle-end cover has been removed.

Procedure

Remove the two screws securing the strain relief to the handle-end cover.

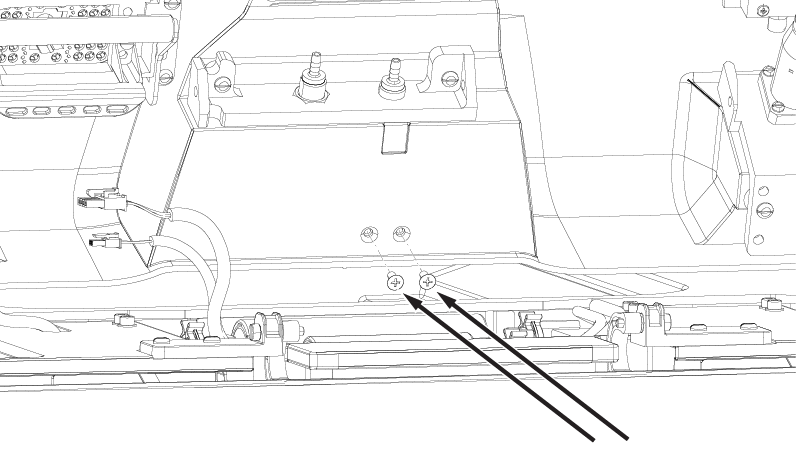

Figure 1. Strain relief screws
Remove the strain relief from the cover.

Figure 2. Old strain relief
1 Strain relief
2 Screws
Install the new strain relief onto the handle-end cover.

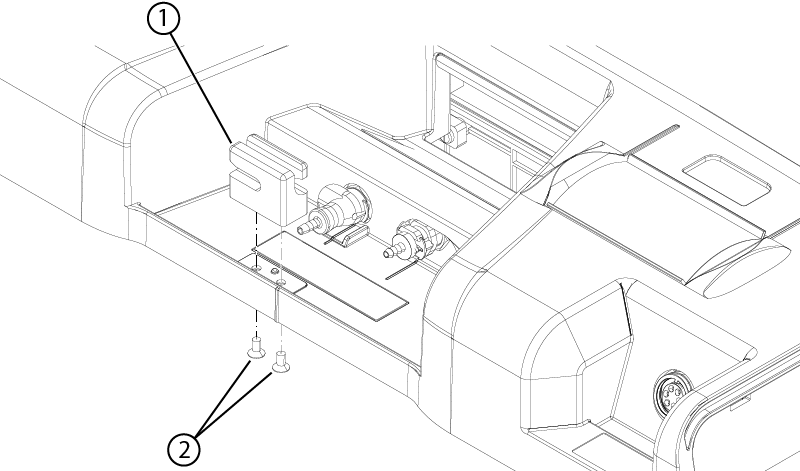

Figure 3. New strain relief
1 Strain relief
2 Screws
Install the two screws securing the strain relief to the cover.
