SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30993450GYZ
Topic ID: id_2021790 Version: 1.2
Date: Jan 10, 2020 10:09:18 AM

Removing the respiratory connector or patient alert connector

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-

Procedure

Disconnect the respiratory tube or patient alert tube.

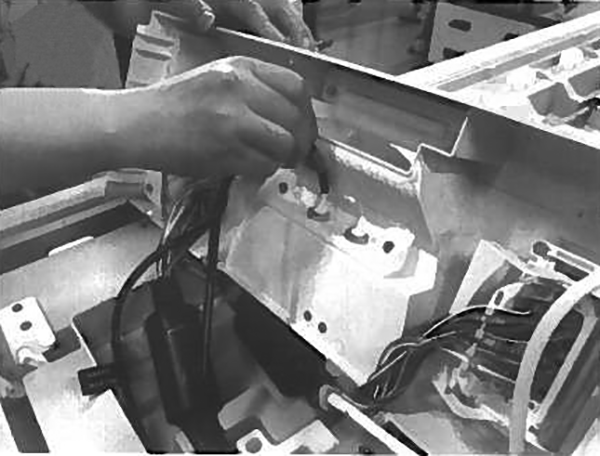

Figure 1. Disconnect tube(s)
Remove the nut securing the respiratory connector or patient alert connector.

Figure 2. Pneumatic connectors
1 SB bracket
2 Patient alert connector
3 Respiratory connector
