SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA308A4450GYZ
Topic ID: id_2022082 Version: 1.4
Date: Dec 17, 2019 6:12:03 PM

Removing the egress switch and springs

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	15 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1 Kit	5113258	-

Procedure

Loosen the two screws securing the egress mounting.

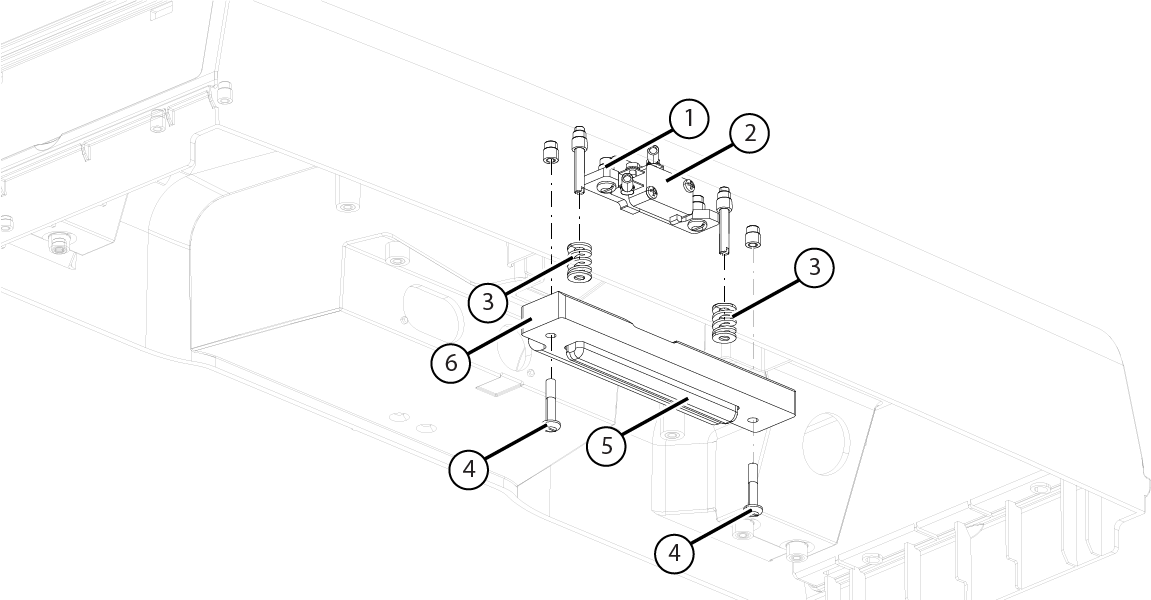

Figure 1. Egress parts
1 Egress switch bracket
2 Egress switch
3 Egress springs
4 Egress mounting screws
5 Egress handle
6 Egress mounting
Remove the egress mounting and egress handle.
Remove the two egress springs.
Loosen the two screws on the egress switch bracket.

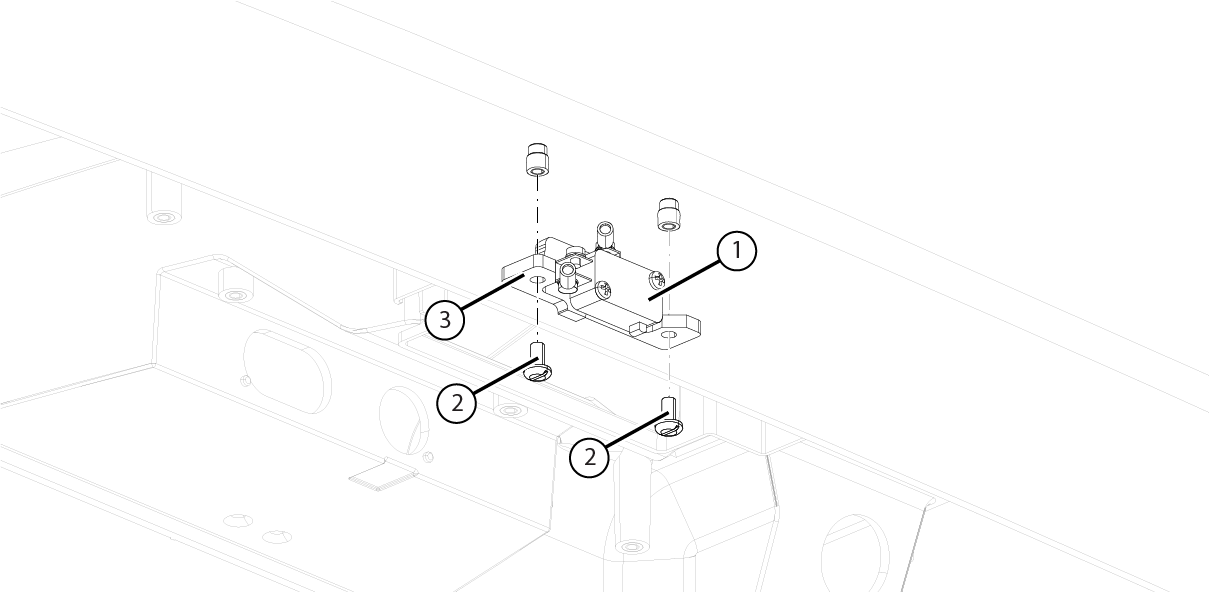

Figure 2. Removing the egress switch bracket and switch
1 Egress switch
2 Egress switch bracket screws
3 Egress switch bracket
Disconnect the egress switch cable from the RF cable.
Remove the egress switch bracket and egress switch together.
Loosen the two screws securing the egress switch, and remove the switch from the bracket.

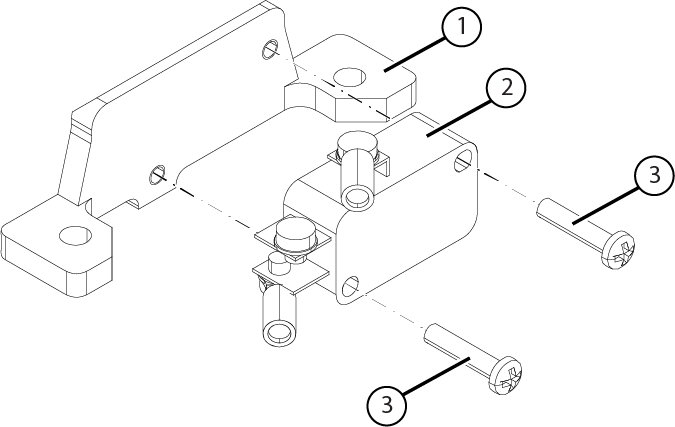

Figure 3. Removing the egress switch
1 Egress switch bracket
2 Egress switch
3 Egress switch screws
