Removing the dockable table left-hand handle-end side bumper

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	15 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Large Set	1	5112581	-


Required conditions
The left- and right-hand table side covers are removed.

Procedure

Undock the table and position it where it can be accessed from all sides.
Engage the table brakes.
Remove the three screws securing the left-hand handle-end side bumper to the table.

Figure 1. Bumper screws
Insert a flat-head screw driver into the slot of the IV bushing and remove the jam nut.

Note: The bumper may be stretched slightly to provide better access.

Figure 2. IV bushing slot

Figure 3. IV bushing
1 Bushing
2 Jam nut
Remove the five nuts and five washers securing the bumper to the tabletop.

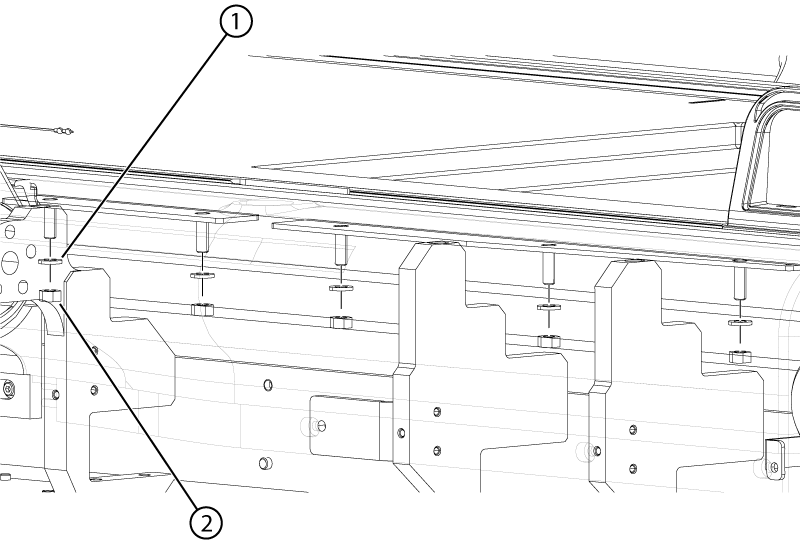

Figure 4. Bumper nuts
1 Washer
2 Nut
Disconnect the touch-and-go assembly connector from the table wiring.
Remove the bumper from the table.
