SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA30C90450GYZ
Topic ID: id_2021617 Version: 1.3
Date: Apr 9, 2020 12:12:36 PM

Removing the dockable table dummy load

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-

Procedure

Undock the table.
Engage the table brakes.

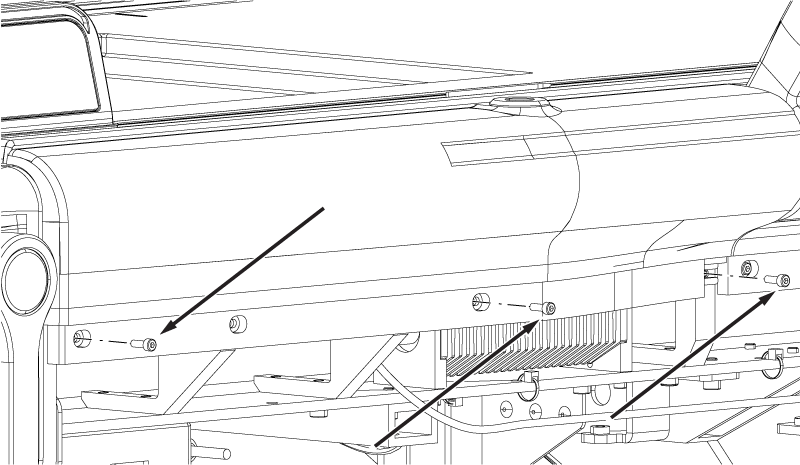

Remove the three screws securing the right-hand handle-end side bumper to the table.

Figure 1. Bumper screws

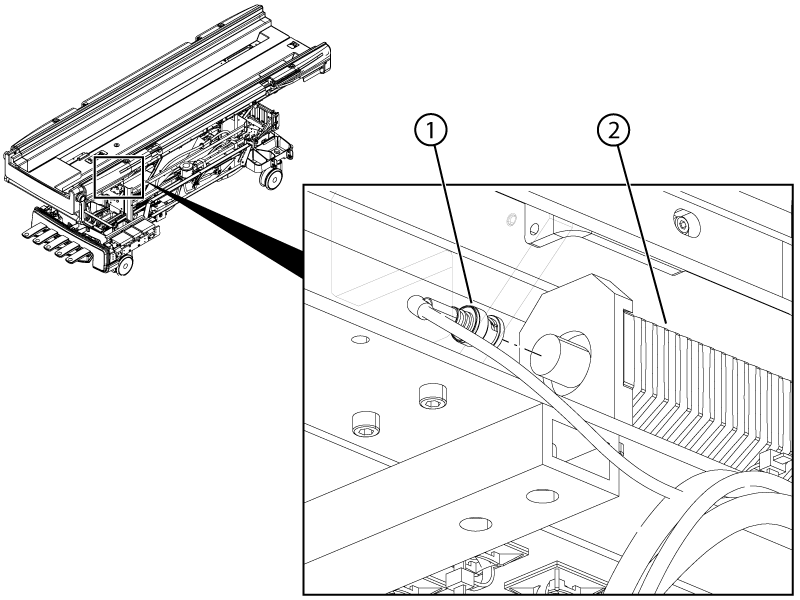

Disconnect the BNC connector from the dummy load.

Figure 2. Dummy load connector
1 Connector
2 Dummy load

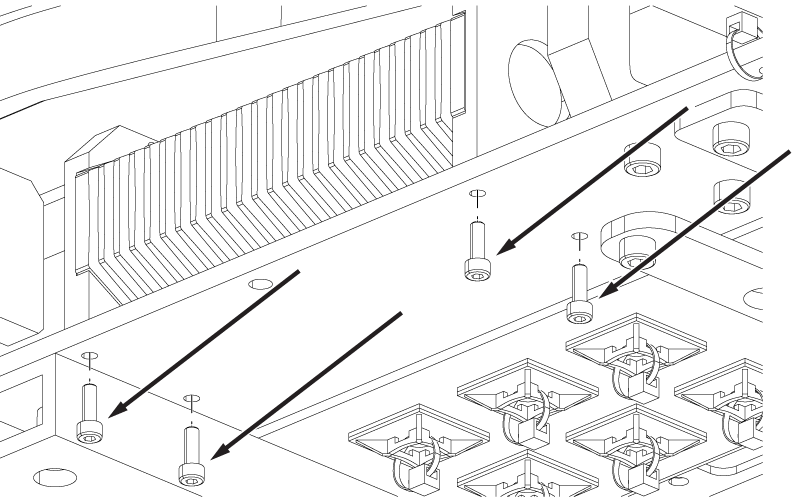

Remove the four screws securing the dummy load to the table top.

Figure 3. Dummy load screws
Remove the dummy load from the table.

Note: The bumper may be stretched slightly to provide better access.

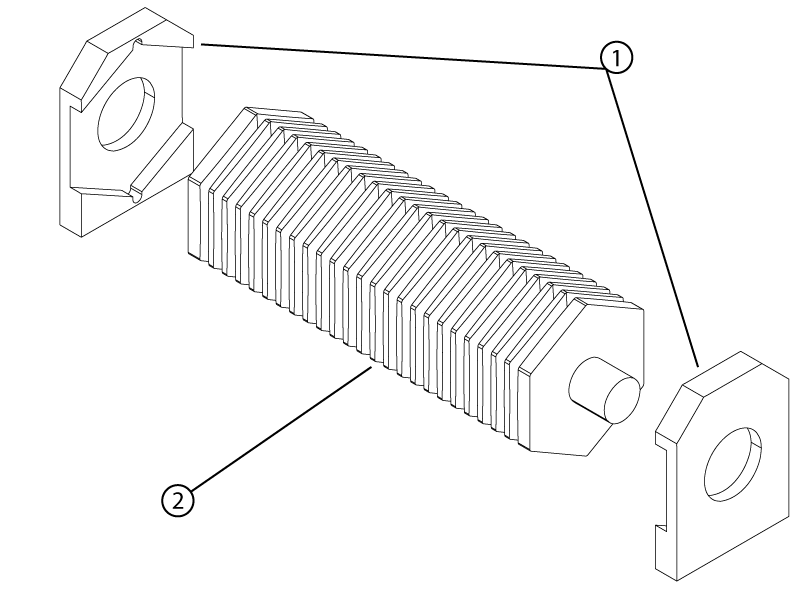

Remove the dummy load brackets from the dummy load and retain them for installation.

Figure 4. Dummy load brackets
1 Brackets
2 Dummy load
