Body Coil Gap Foam Replacement

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-60 minutes10 minutes
Tools and test equipment
ItemQuantityPart numberManufacturer
Nonmagnetic Titanium Service Tool Kit, Large Set15112581-
Consumables
ItemQuantityPart numberManufacturer
Alcohol wipesAs needed--
Replacement parts
ItemQuantityPart numberManufacturer
Body coil gap foam with adhesive1

5482545

-
Table 1. Safety

Procedure

  1. Note: Even though the illustrations used in this procedure are for front side gap foam, this procedure can be applied for rear side gap foam also.
    Remove the front endbell. See Removing the front endbell or Removing the rear endbell.

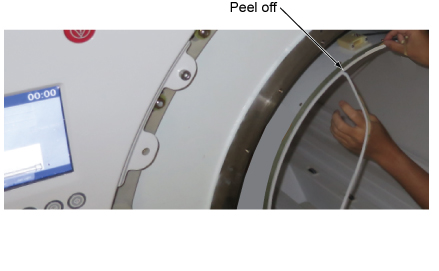

  2. Peel off the damaged gap foam.
    Figure 1. Peel off
  3. Clean the attachment area with alcohol wipes.

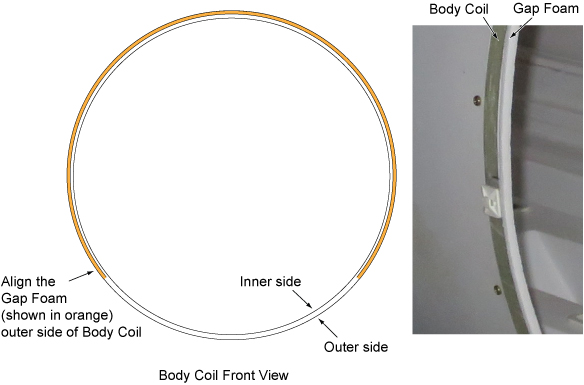

  4. Note: When attaching the gap foam, align the gap foam to the outer side of the body coil.
    Figure 2. Alignment note

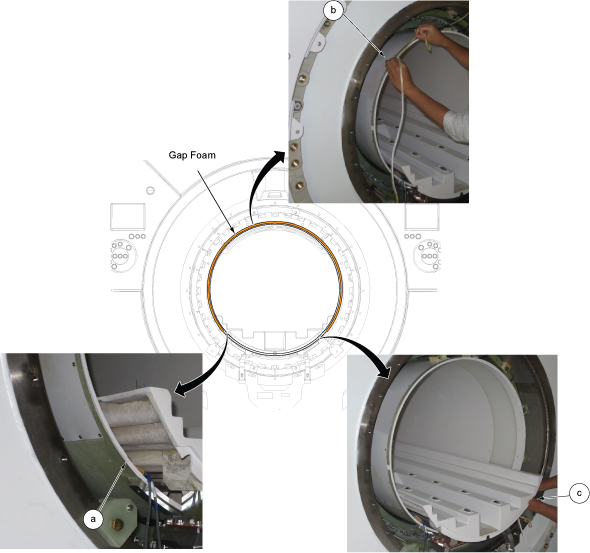

    Neatly attach the gap foam along the outer side of body coil per following steps.
    1. Peel off the backing of adhesive little by little and start to attach the gap foam under the bridge.
    2. Attach the gap foam along the outer side of body coil.
    3. When it reaches to the other side under the bridge, cut the gap foam.
    Figure 3. Gap foam attachment
  5. Restore the endbell in reverse order of the removal. See Installing the front endbell or Installing the rear endbell.

Finalization

Perform Check Scan.
