SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA3048B230GYZ
Topic ID: id_15668210 Version: 1.19
Date: Jul 28, 2021 1:50:41 PM

Replacing the Dual Drive Transmit Receive Switch (DTRSW) and two-channel preamp

Prerequisites

The following tables represent a comprehensive roll-up of the personnel, time, tools, test equipment, and replacement parts you need to complete all possible tasks in this procedure.


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	30 minutes	30 minutes


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Digital Voltmeter (DVM)	1	46-194427P284	-
Red Warning LOTO Tag	2	46-194427P322	-
Multi-Locking Device (if multiple service personnel are involved)	1	46-194427P313	-
Red LOTO Personal Lock Wrap	2	2393068	-
Brass Master Padlock with Brass Shackle	2	46-194427P320	-
Nonmagnetic Titanium Service Tool Kit, Small Set	1 Kit	5113258	-
Nonmagnetic Titanium Service Tool Kit, Large Set	1 Kit	5112581	-


Replacement parts
Item	Quantity	Part number	Manufacturer
Dual Drive Transmit Receive Switch	1	5384700-2	-
Two-Channel Preamp Assembly	1	5782534	-

Safety

Before working in any GE Healthcare MR suite or performing any GE Healthcare service procedure, you must:

Have read and understood all hazard conditions and safety requirements in the latest revision of the GE Healthcare MR Service Safety Manual (5452735).
Have successfully completed all relevant GE Healthcare Environmental Health and Safety (EHS) courses (or for non-GE employees, equivalent workplace training courses).
Comply with all site-specific training and workplace safety requirements.

If you have any safety concerns at any time, do not begin work or immediately stop work and move to a safe location. Immediately contact your supervisor or site safety officer for instructions on how to proceed.

Warning

Shock hazard

High bias voltages are present at the preamp during normal operation.

Remove power, lock out, and tag out before accessing the preamp.

CAUTION

Strong magnetic field

The Dual Drive Transmit Receive Switch (DTRSW) has no ferrous material and will not be attracted to the magnet, but the eddy currents can cause resistance when you pull the DTRSW away from the magnet.

When removing and replacing the DTRSW, keep the DTRSW as far away from the magnet as possible while moving it.

About this task

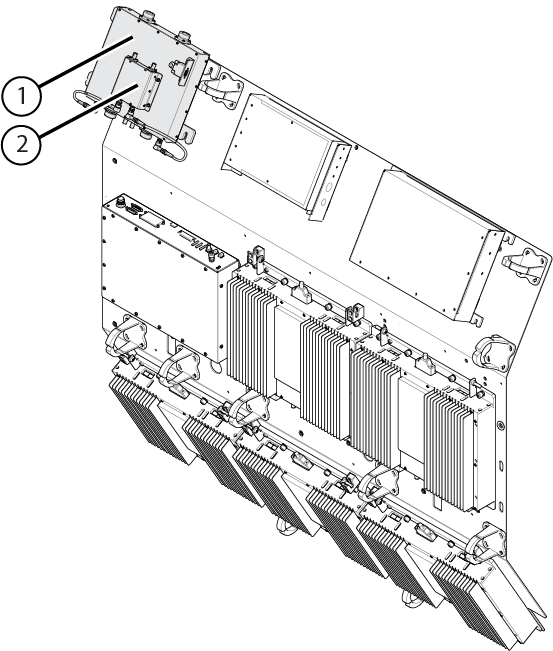

This procedure includes the following FRU parts replacement procedures:
