SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA302C3840GYZ
Topic ID: id_2014795 Version: 1.11
Date: Dec 21, 2021 12:22:35 PM

Installing the KASC terminator

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	15 minutes	-

Procedure

Measure the resistance of the new terminator and make sure it is approximately 50 ohms.
Carefully push in the replacement terminator in the front panel of the KASC.

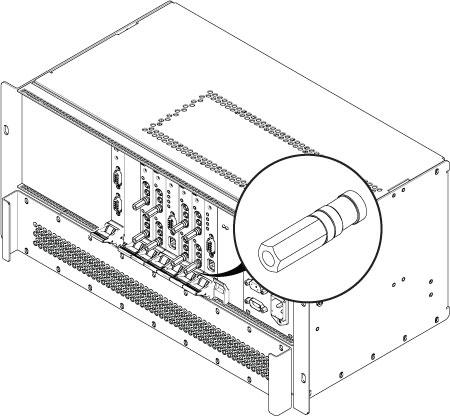

Figure 1. KASC terminator
