Installing the dockable table right-hand middle side bumper

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	15 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Large Set	1	5112581	-

Procedure

Install the right-hand middle bumper onto the table.

Important: Apply pressure to the bumper during installation to make sure there is no gap between the tabletop and the bumper.
Connect the touch-and-go assembly connectors to the table wiring.
Install the four nuts and four washers securing the bumper to the tabletop.

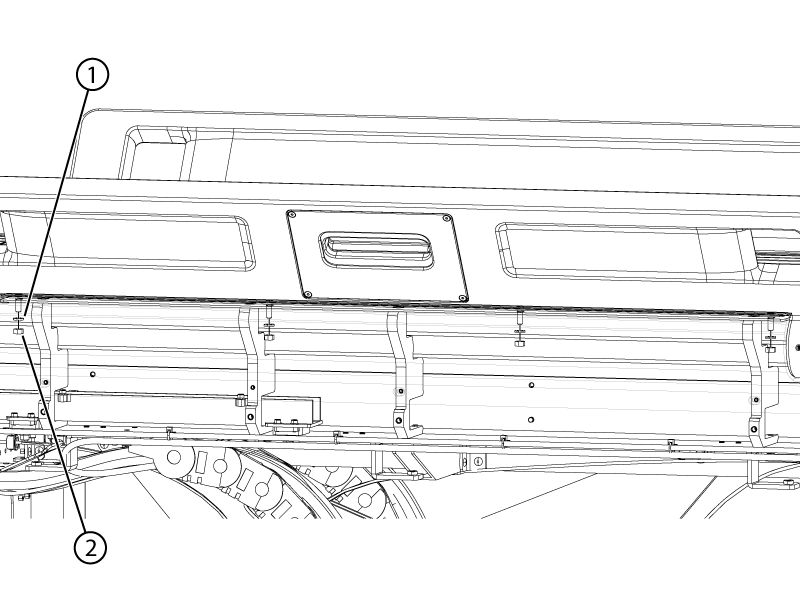

Figure 1. Bumper nuts
1 Washer
2 Nut

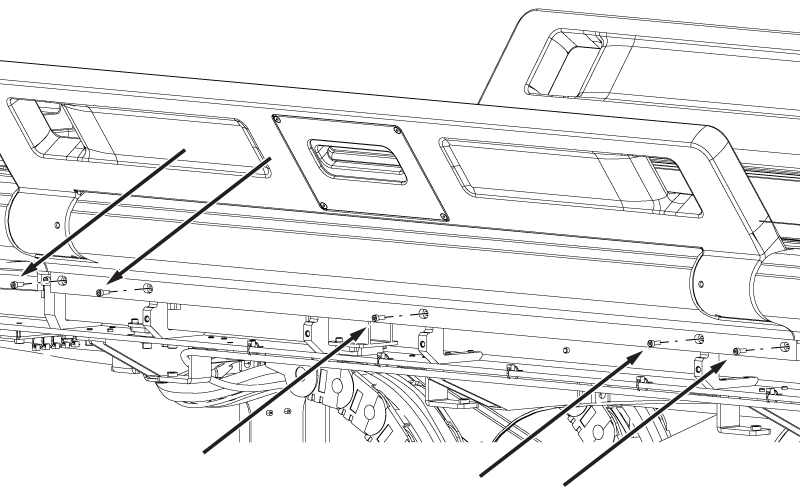

Install the five screws securing the bumper to the table.

Figure 2. Bumper screws
