Installing the hydraulic rotary pump

Installs the hydraulic rotary pump in the dockable patient table.

Procedure

  1. Move the transparent low-pressure oil hose into position at the left side of the pump, reconnect the hose, and secure with fittings.
    Note: To help prevent leaks, avoid reusing old hose clamps. Secure the low-pressure line with a new hose clamp.
  2. Apply Loctite #242 to the three brass screws and reattach the pump brass plate to the front table base.

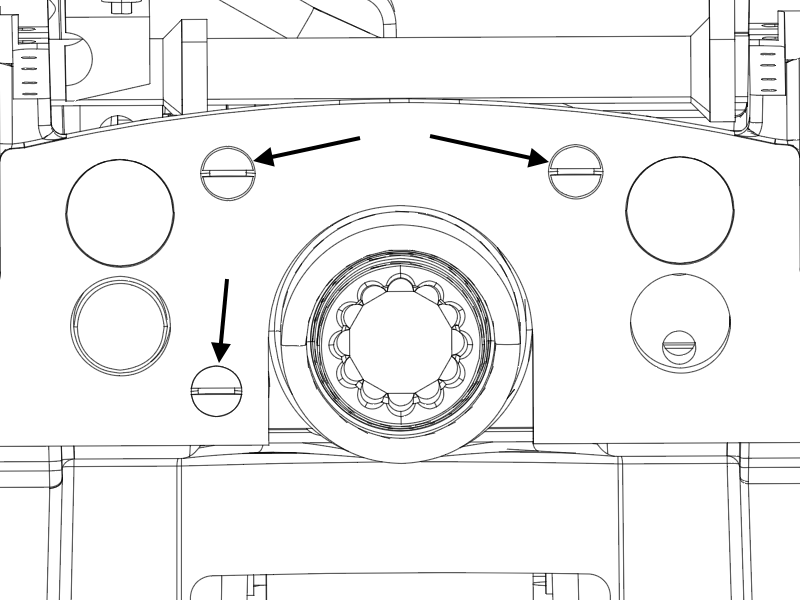

    Figure 1. Front table base screws
  3. Reattach the manifold pipe to the right side of the pump by hand-tightening the manifold nut. You may need to align the manifold during pump installation.
  4. Position the low-pressure hose clamp close to the brass hex fitting and away from the down rod so the permanent clamp and the down rod do not touch. When the hose is secure, make sure the pump is still sitting perpendicular to the front casting, then tighten the manifold nut.

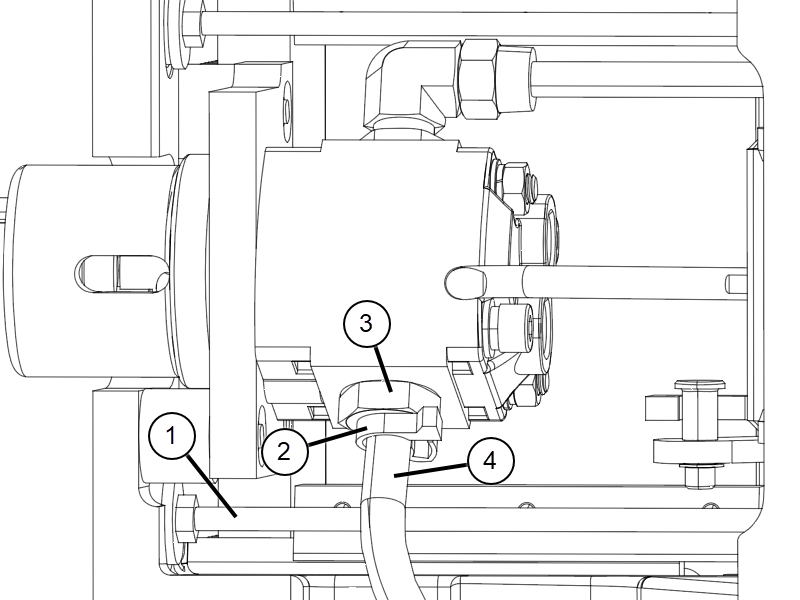

    Figure 2. Hydraulic oil hose, fittings, clamp (bottom view)
    1Down rod
    2Hose clamp
    3Fitting
    4Transparent low-pressure hose
  5. To reassemble the table frame connector assembly, do the following:
    1. Slide the assembly back onto its track.
    2. Reattach the spring under the right cable track, and reattach the matching spring under the left side cable track.

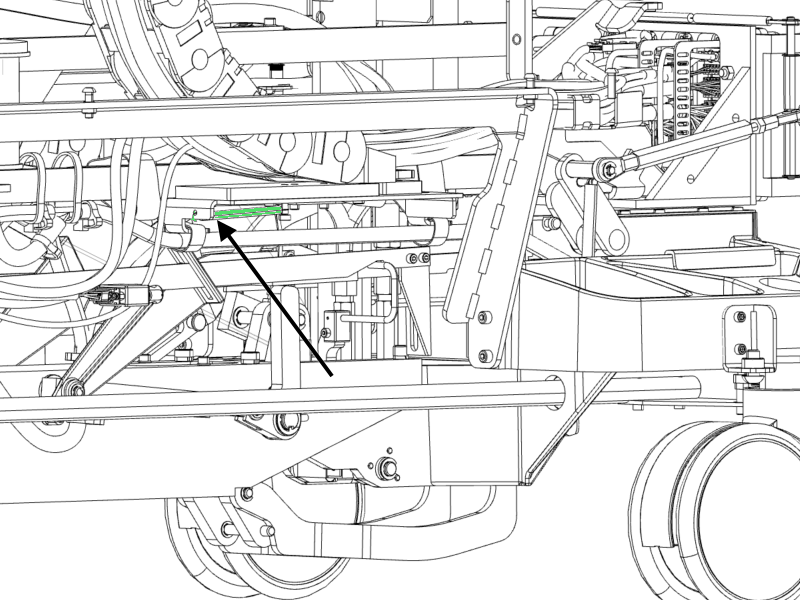

      Figure 3. Cable track spring
    3. Reattach the spring near the right rod link, and reattach the matching spring near the left side rod link.

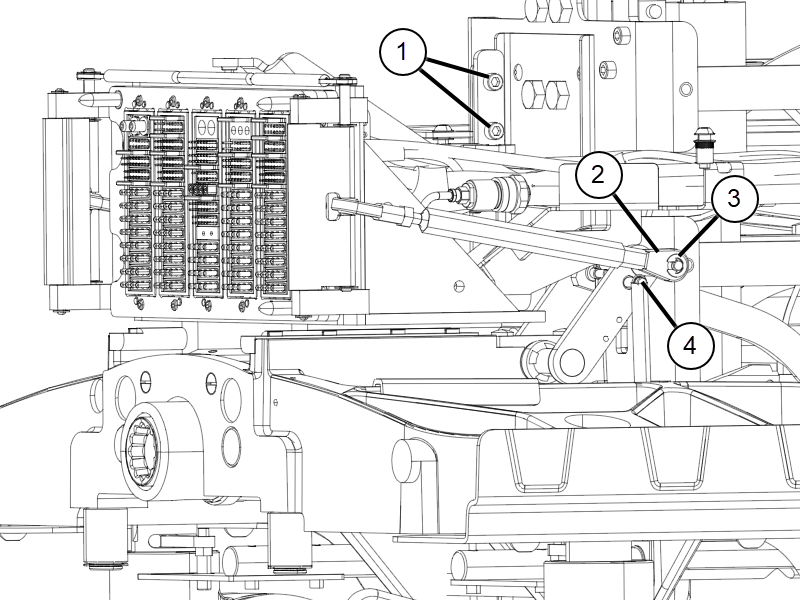

      Figure 4. Table frame connector assembly rod link
      1Bracket screws
      2Rod link
      3E-clip
      4Spring
    4. Attach the bracket and secure with bracket screws.
    5. Position the rod links back onto pins and secure the rod links with e-clips.
    6. Raise the table. Raise the table lock safety bar to its unlocked position.
    7. Dock the table, hold open the down valve, and run the rotary pump for 30 seconds.
  6. Undock the table and lower it completely to check the hydraulic fluid. If necessary, add hydraulic oil to the reservoir. The level should be 6.5 to 12.5 mm above the full line when the table is at its lowest position.
    Figure 5. Hydraulic fluid reservoir
