SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA302C5350GYZ
Topic ID: id_2020486 Version: 2.1
Date: Apr 23, 2020 8:52:36 PM

Installing a dockable table cradle vertical wheel

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	5 minutes	-

Procedure

Push the wheel assembly into the cradle from the bottom.

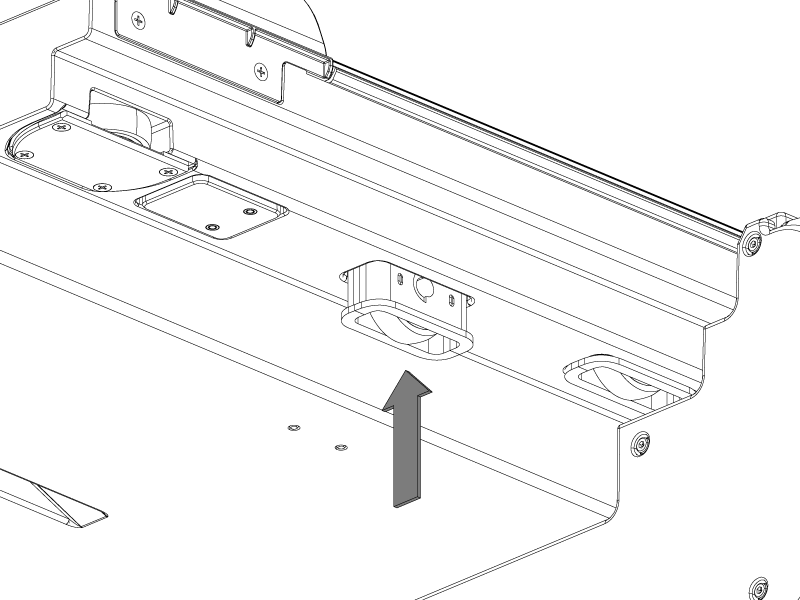

Figure 1. Vertical wheel
Move the cradle to install other wheels as required.
Move the cradle to the home position.
Dock the table.
