Doing a TPS reset

Prerequisites


Personnel Requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	15 minutes	10 minutes


Safety
Before working in any GE Healthcare MR suite or performing any GE Healthcare service procedure, you must: Have read and understood all hazard conditions and safety requirements in the latest revision of the GE Healthcare MR Service Safety Manual (5452735). Have successfully completed all relevant GE Healthcare Environmental Health and Safety (EHS) courses (or for non-GE employees, equivalent workplace training courses). Comply with all site-specific training and workplace safety requirements. If you have any safety concerns at any time, do not begin work or immediately stop work and move to a safe location. Immediately contact your supervisor or site safety officer for instructions on how to proceed.

Procedure

To do a TPS reset, open the Common Services Desktop.
Under the Utilities tab, click TPS Reset in the left navigation pane.

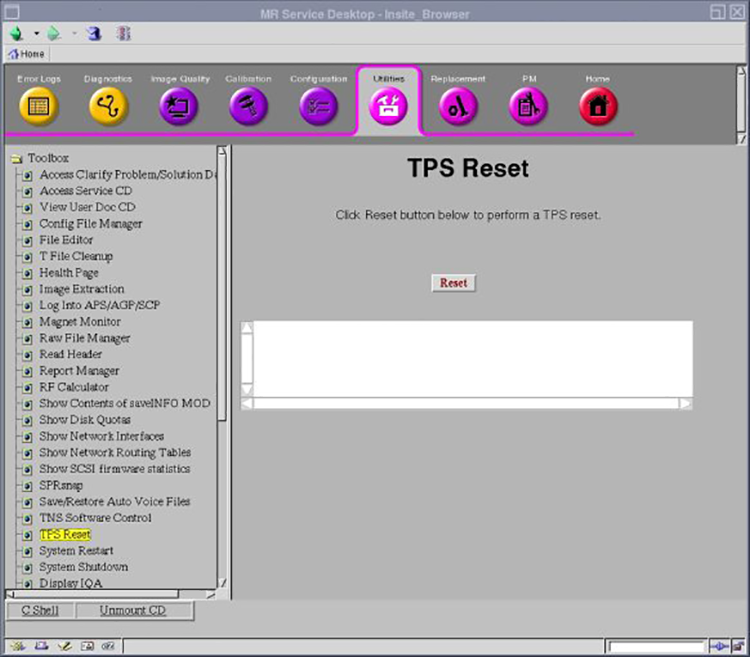

Figure 1. Utilities tab
Click Reset to begin the reset. The following sequence of messages shows:
- Reset/Download TPS was successful.
- Reset/Download TPS in progress.
- TPS reset has completed.
