Removing the ICN

Removes the Image Compute Node (ICN) to replace it or to replace the ICN power supply.

About this task

Procedure

  1. If the ISC is on the wall, loosen the attachment screws and lift the ISC PW cover a small distance to remove it, otherwise complete the next step.
    Note: If the furnished closet door prevents removal, you can separate the PW cover into two pieces by removing 6 screws at the center.
    Figure 1. ISC PW Cover

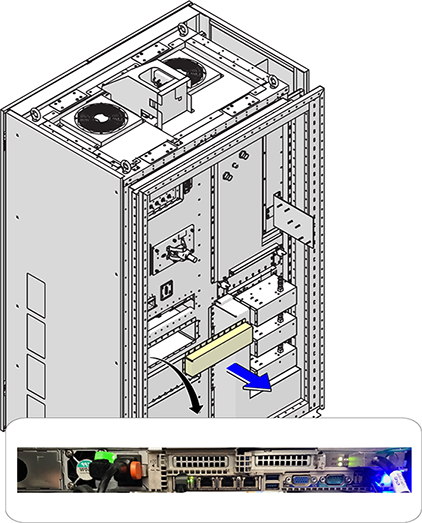

  2. Remove the rear access cover.
    Figure 2. ICN Cable Removal
  3. Disconnect all the cables from the rear of the ICN, including the AC power plug(s).

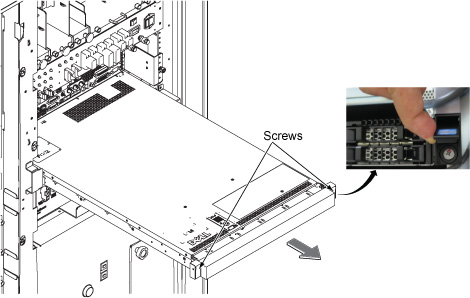

  4. Loosen 2 captive screws under the screw cover and slide out the ICN.
    Figure 3. Slide the ICN out
