Installing the dockable table right-hand handle-end side bumper

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	15 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Large Set	1	5112581	-

Procedure

Install the right-hand handle-end side bumper onto the table.

Important: Apply pressure to the bumper during installation to make sure there is no gap between the tabletop and the bumper.
Connect the touch-and go assembly connector to the table wiring.
Install the five nuts and five washers securing the bumper to the tabletop.

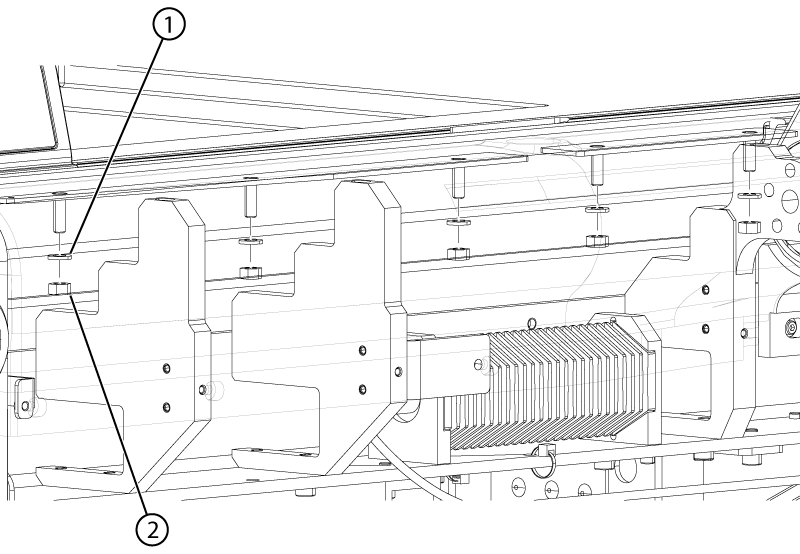

Figure 1. Bumper nuts
1 Washer
2 Nut
Install the IV bushing into the bumper.

Figure 2. IV bushing
1 Bushing
2 Jam nut
Install the jam nut onto the IV bushing.

Note: The bumper may be stretched slightly to provide better access.
Insert a flat-head screw driver into the slot of the IV bushing and tighten the jam nut.

Figure 3. IV bushing slot
Install the three screws securing the bumper to the table.

Figure 4. Bumper screws
