Installing the exciter

Install a replacement exciter.

Prerequisites

Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
1-15 minutes15 minutes

Procedure

  1. Set the exciter on the tray.
  2. Connect the three connectors at the rear of exciter.
  3. Push the exciter half way back.
  4. Secure 2 screws.

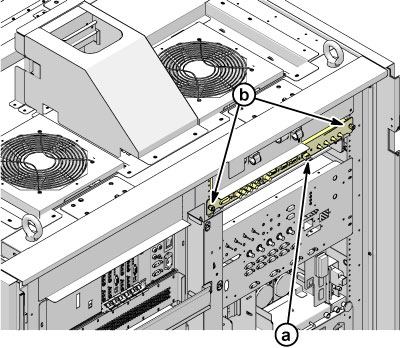

    Figure 1. Exciter installation
  5. Connect all connectors.
  6. Close the ISC front covers.
