3.0T HD T/R Knee Array Coil Setup for MCQA or SNR Test

Prerequisites

Table 1. Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	15 minutes	Not Applicable

Table 2. Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Phantom Positioner	1	Legacy and unified phantom kit	5114356-12	-
Large Cylindrical Unified Phantom	1	Unified phantom kit	5342679-2	-

Table 3. Required conditions
Condition	Reference	Effectivity
The following coil configuration names must be installed to run this tool: `HD TR Knee PA`.	-	-

This procedure can be performed using either a flat table or a curved table.

Note:

Coils do not ship with phantoms. Phantoms come in a unified phantom set with the MR system.

Topic ID: id_SL5069978-625337

Place the lower section of the coil on the patient table.

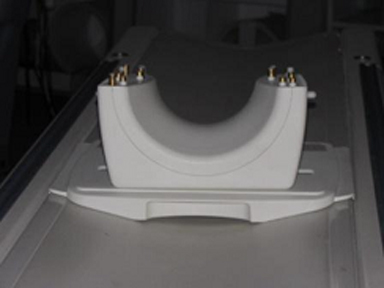

Figure 1. Coil Placement on Curved Table

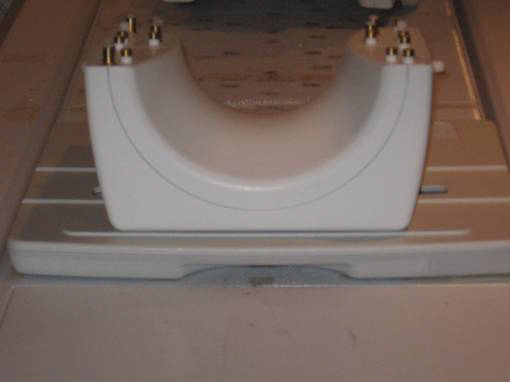

Figure 2. Coil Placement on Flat Table
Align the alignment mark on the coil to zero position on the scale.

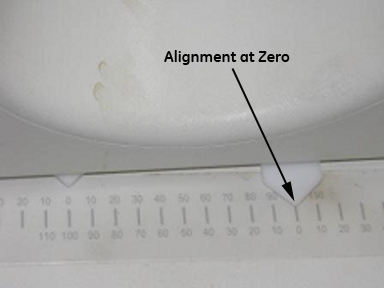

Figure 3. Alignment Marks
Place the large cylindrical unified phantom into the positioner.

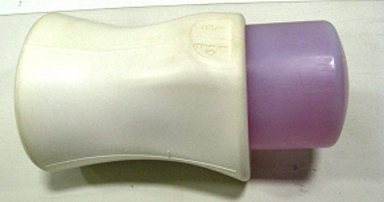

Figure 4. Phantom Placed into Positioner
Place the phantom positioner setup on the lower part of the coil.

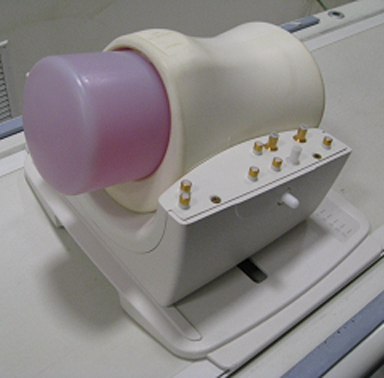

Figure 5. Placement of Phantom Positioner Setup on Flat Table

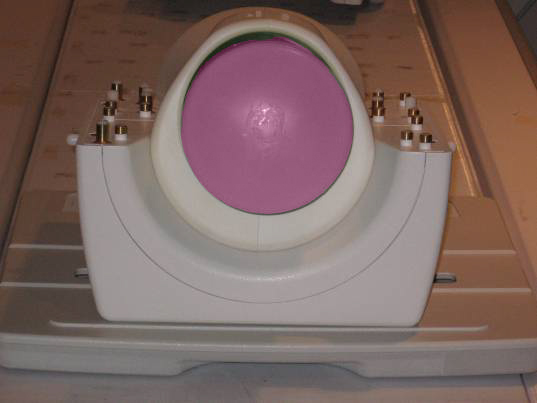

Figure 6. Placement of Phantom Positioner Setup on Curved Table

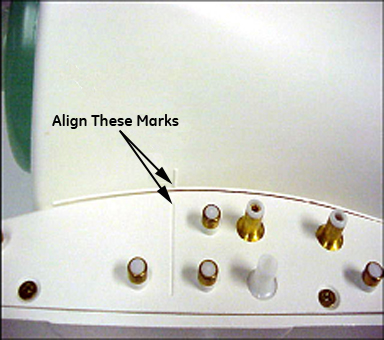

Ensure that the phantom positioner is aligned with the posterior coil section as indicated by the marks on the positioner and the coil.

Figure 7. Positioner Aligned with Posterior Coil Section
Carefully align the connector pins on the lower part of the coil with the upper part of the coil. Latch both the coil sections into place. The scanner will not operate if the coil sections are not latched correctly.

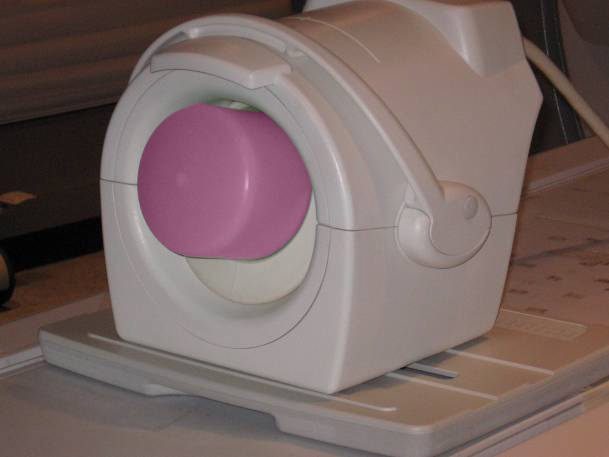

Figure 8. Coil Sections in Place
Connect the coil to port A of the system LPCA, and landmark the coil at the cross mark available near the handle of the coil. Advance to scan.

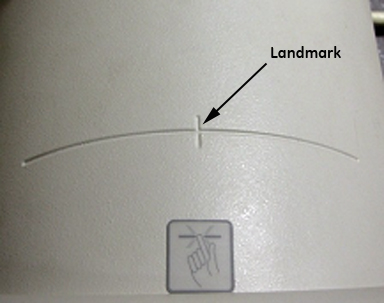

Figure 9. Landmark Coil
Perform MCQA Test, if available. Otherwise, perform Surface Coils SNR Test.

Topic ID: id_14932019

No finalization steps.
