HD T/R Quad Extremity Coil Introduction

Overview

This document describes the HD T/R Quad Extremity Coil by Invivo, catalog M7000GT (for flat table) and catalog M3335LP (for curved table).

Product Identification and Shipping List

To identify the coil, refer to the coil label and illustration below.

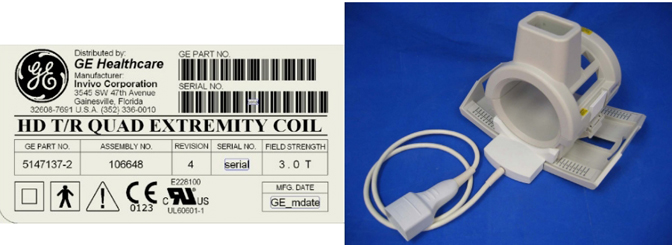

Figure 1. 3.0T Coil and Product Label for Curved Table

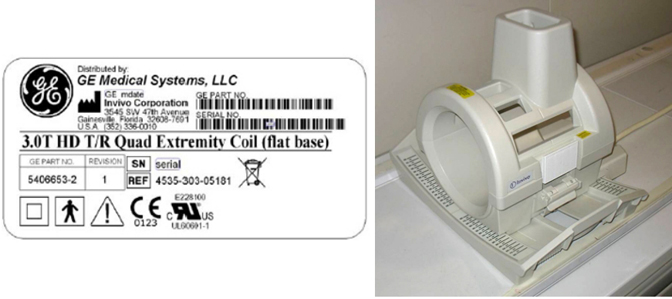

Figure 2. 3.0T GEM Coil and Product Label for Flat Table
Table 1. T/R Quad Extremity Coil Shipping List (for Curved Table)
Description GE Part Number Supplier Part Number GE Part Number Supplier Part Number Quantity
1.5T 3.0T
T/R Knee/Foot Coil5147225-21067145147137-21067151
Knee Pad2357819-3146292357819-3146291
Leg/Foot Support Pad2357819-4146272357819-4146271
Foot Support Pad2357819-5146262357819-5146261
Toe Pad2357819-6146282357819-6146281
Operator Manual5147225-45001635147225-45001631
Unified Phantom Positioner5147225-7—5147225-7—1
Table 2. T/R Quad Extremity Coil Shipping List (for Flat Table)
Description GE Part Number Supplier Part Number GE Part Number Supplier Part Number Quantity
1.5T 3.0T
T/R Quad Extremity Coil5406350-24535-303-0474*5406653-24535-303-0518*1
Knee Pad—4535-303-0339*—4535-303-0339*1
Leg/Foot Support Pad—4535-303-0340*—4535-303-0340*1
Foot Support Pad—4535-303-0341*—4535-303-0341*1
Toe Pad—4535-303-0342*—4535-303-0342*1
Operator Manual—4535-303-0512*—4535-303-0512*1
Unified Phantom Positioner4535-303-0342*142705147225-7142701

* The part number’s revision is the last digit, in place of the * (asterisk).

Environmental Requirements

Storage requirements: Store the coil in an air-conditioned scan or equipment room. A storage space of 21.6 in x 17.7 in x 15.7 in (55 cm x 45 cm x 40 cm) is required.

Dimensions: 19 in (W) x 12 in (L) x 12 in (H) (48 cm x 30 cm x 36 cm)

Weight: 15 lb (6.8 kg)
