3.0T 8-channel high res brain array introduction
Product Identification and Shipping List

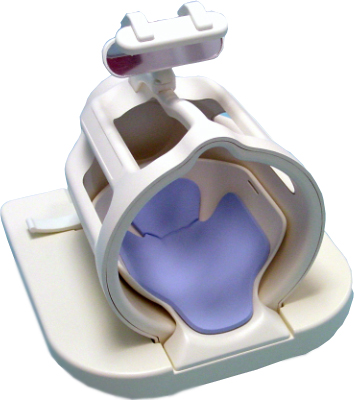

This information is for the 3.0T HD 8-Channel High Resolution Brain Array Coil.
| Description | GE Part # | Invivo # | Quantity |
| 3.0T HD 8- Channel High Resolution Brain Array Coil | 5147134-2 | 106455 | 1 |
| Phantom Positioner | 2317112-3 | 102558 | 1 |
| Operator Manual | 5147134-4 | 500194 | 1 |
| Thick Head Pad | 2317112-9 | 102985 | 1 |
| Thin Head Pad | 2317112-10 | 102984 | 1 |
| Spacer Pad | 2317112-7 | 101622 | 1 |
| Wedge Pad | 2317115-8 | 101407 | 2 |
Compatibility
This coil is compatible with the following hardware configurations: Signa HDx and HDxt (3.0T only) as well as Discovery MR750.
Related Documentation
3.0T HD 8-Channel High Resolution Brain Array Operator’s Manual, Direction 5147134-4
Environmental Requirements
Storage
This equipment must be stored under the following conditions:
-
Ambient temperature range of +10° to +40°C
-
Relative humidity range of 10% to 90%, non-condensing
-
Atmospheric pressure range of 500 hPa to 1060 hPa
Coil and Phantom Specifications
Dimensions
| Coil Dimension: | 417.6 mm x 393.4 mm x 406.4 mm | 16.44 in. x 15.49 in. x 16.00 in. |
| Phantom Positioner: | 225.6 mm x 228.6 mm x 23.9 mm | 8.88 in. x 9.00 in. x 0.94 in. |
Weight
| Coil Weight: | 7.20 kg | 16.0 lb. |
| Phantom Positioner: | 0.45 kg | 1.0 lb. |
