3.0T HD 8-Channel Foot/Ankle Coil Introduction

Product Identification and Shipping List

Refer to Figure 1 to identify the 3.0T HD 8-Channel Foot/Ankle Coil (FAC), catalog M3340CB by Invivo.

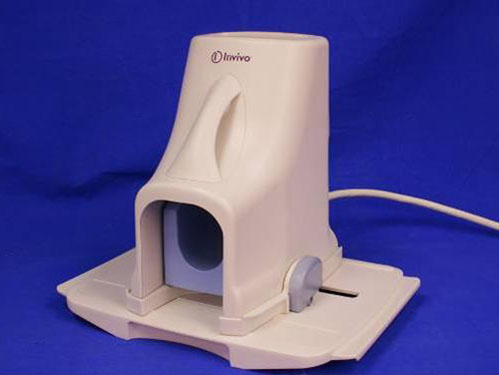

Figure 1. Invivo 3.0T HD 8-Channel Foot/Ankle Coil
Table 1. Foot/Ankle Coil Shipping List
Description GE Part # Invivo Part # Qty
3T HD 8-Channel Foot/Ankle Coil with Cable (Electrical Assembly)5273235-21091831
3T HD 8-Channel Foot/Ankle Coil Operator Manual5273235-44535-302-186011
HD 8-Channel FAC Baseplate Assembly5273235-64535-300-703811
HD FAC Ankle Pad5273235-74535-300-676811
HD FAC Ramp Pad5273235-84535-300-610811
HD FAC Foot Pad5273235-94535-300-610911

Related Documentation

3.0T HD 8-Channel Foot Ankle Coil Operator's Manual, 5273235-4.

Environmental Requirements

Storage

This equipment must be stored under the following conditions:

  • Ambient temperature range of +50 °F to +104 °F (+10 °C to + 40 °C)

  • Relative humidity range of 10% to 90%, non-condensing

  • Atmospheric pressure range of 500 hPa to 1060 hPa

To store the coil and baseplate, a storage space greater than 15.9 in/40.4 cm (width) x 12.0 in/30.6 cm (length) x 13.5 in/34.1 cm (height) is required.

Table 2. Dimensions (Width x Length x Height)
Coil 12.8 in x 7.0 in x 11.3 in17.8 cm x 32.4 cm x 28.7 cm
Phantom 3.45 in x 8.75 in x 10.3 in8.76 cm x 22.2 cm x 26.1 cm
Baseplate 15.9 in x 12.0 in x 12.7 in40.4 cm x 30.5 cm x 32.2 cm

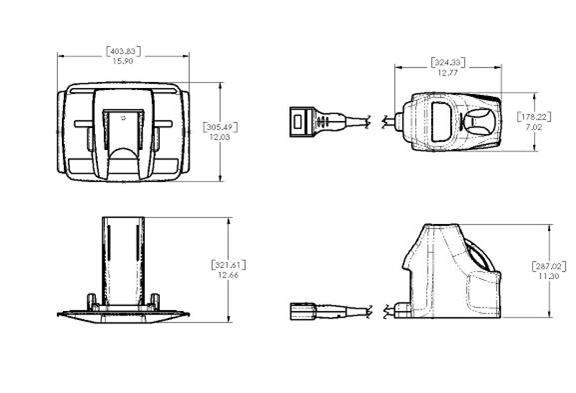

Figure 2. Coil Dimensions

Weight

  • Coil with cable: 8.15 lb (3.70 kg)

  • Phantom: 6.25 lb (2.83 kg)

  • Baseplate: 6.10 lb (2.77 kg)
