GEM coils introduction

This document describes the 3.0T GEM (Geometry Embracing Method) high-density coils made by General Electric Healthcare, which are receive-only coils. The 3.0T GEM catalog number is M7000AM. The coils included for this catalog number are:

  • 3.0T GEM Head Neck Unit (HNU)

  • 3.0T GEM Anterior Array (AA)

  • 3.0T GEM Posterior Array (PA)

The Peripheral Vascular (PV) coil is optional for the GEM system, and the catalog number is M7000AL.

Systems with DV24 software can receive the M7000GH 3.0T GEM Head Neck Unit (HNU). This MCAT will not function on DV23.1 or earlier.

The performance of any modifications and/or repairs that have not been evaluated and approved by GEHC Coils Engineering may cause the device to be adulterated within the meaning of section 501(h) of the Food, Drug and Cosmetic Act, 21 U.S.C. § 351(h) and is strictly prohibited.

Topic ID: id_SL3982946-1120763

Available GEM Coils

Topic ID: id_SL3987805-1120763

GEM HNU Coil

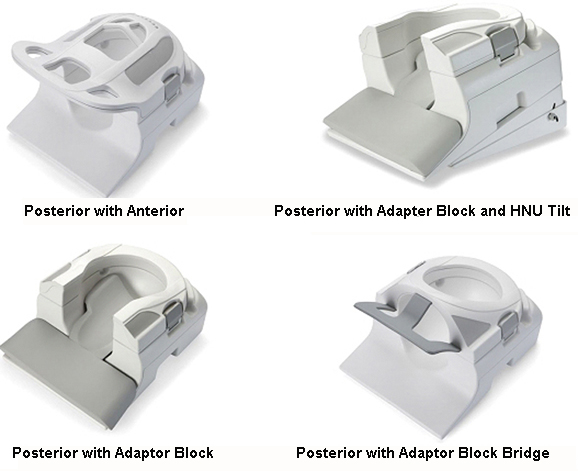

The GEM HNU coil consists of four parts: Anterior (Face Bill), Posterior, Adaptor Block and Adaptor Block (AB) Bridge. To identify the HNU coil parts, see the illustrations below.

Two versions of this coil are available.

  • M7000AM—3.0T GEM Head Neck Unit (HNU)

  • M7000GH—3.0T GEM Head Neck Unit (HNU) – Used on systems with Silenz and QuietMR. (This MCAT does not function on systems with DV23.1 or earlier.)

Figure 1. Labels for 3.0T HNU Components
Figure 2. Labels for 3.0T HNU Components (Used with Silenz)
Figure 3. HNU Coil Components
Table 1. Shipping Contents for GEM HNU
Description Part Number Quantity

3.0T GEM HNU Coil (includes mirror assembly)

5394051

(For Silenz and QuietMR only) 5445051

1

GEM HNU Phantom Positioner

5405750

1

GEM HNU Tilt

5408135

1

GEM HNU Pad Kit

5417964

1

Topic ID: id_SL3987806-1120763

GEM AA Coil

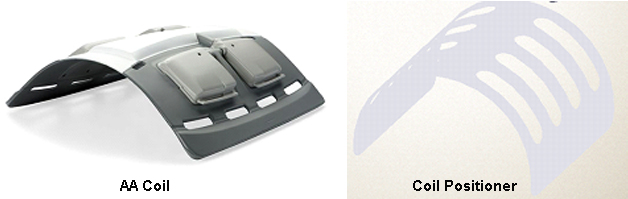

To identify the GEM AA coil, see the illustrations below. The AA coil should be stored on top of the coil positioner to maintain the curved shape of the AA coil.

Figure 4. Label for 3.0T GEM AA Coil

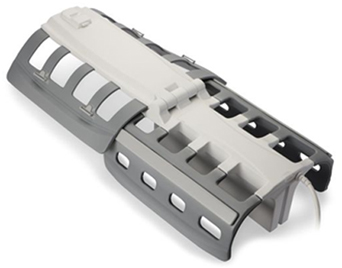

Figure 5. AA Coil Components
Table 2. Shipping Contents and Packing List for GEM AA
Description Part Number Quantity

3.0T GEM AA Coil (includes patient straps)

5391454

1

GEM AA Coil Positioner

5401856

1

GEM AA System Cable Guide

5392791

2

GEM AA Asset Imaging Pad

5408165

1

Topic ID: id_SL3987807-1120763

GEM PA Coil

To identify the GEM PA coil, see the illustrations below. The PA coil is installed in the patient table cradle. (See the installation document or FRU replacement section.)

Figure 6. Label for 3.0T GEM PA Coil

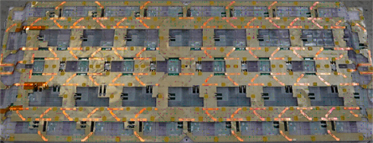

Figure 7. PA Coil
Table 3. Shipping Contents for GEM PA
Description Part Number Quantity
Box 1

3.0T GEM PA Coil

5392930

1

Box 2

GEM PA Phantom Positioner

5405748

1

Topic ID: id_SL3987811-1120763

GEM PV Array Coil (Optional)

To identify the GEM PV coil, see the illustrations below.

Figure 8. Label for 3.0 GEM PV Coil, M7000AL
Figure 9. GEM PV Coil
Table 4. Shipping Contents for PV Coil
Description Part Number Quantity

3.0T GEM PV Coil (including patient straps)

5395255

1

GEM PV Phantom Positioner

5405749

1

GEM PV Ramp Pad

5404981

2

Topic ID: id_SL3987815-1120763

Related Documentation

Operator Manual, GE P/N 5375781-2.

Topic ID: id_SL3987816-1120763

Environmental Requirements

Storage Requirements: All coils should be stored in the scan room.

For HNU Coil

  • Dimensions: L 495 mm (19.5 in) x W 388 mm (15.3 in) x H 354 mm (13.9 in)

  • Weight: 8.8 kg (19.4 lb)

For AA Coil

  • Dimensions as stored on the patient positioner: L 556 mm (21.9 in) x W 673 mm (26.5 in) x H 280 mm (11 in)

  • Weight: 6.3 kg (7.9 lb)

For PA Coil and PA Filler

  • Dimensions: L 1288 mm (50.7 in) x W 414 mm (16.3 in) x H 100 mm (3.9 in)

    Note:

    Length includes the system cable.

  • Weight: 6.8 kg (14.9 lb)

For PV Coil

  • Dimensions in folded position for storage: L 697 mm (27.4 in) x W 642 mm (25.3 in) x H 248 mm (9.8 in)

  • Weight: 9.2 kg (20.2 lb)
