• Discovery MR750w and SIGNA™ Architect T 3.0T System Service Methods
  • 5690002-2EN Revision 4
  • Object ID: 00000018WIA306CCE20GYZ
  • Topic ID: id_13107152 Version: 2.0
  • Date: Feb 22, 2021 1:46:51 AM

3.0T Signa HD Shoulder Introduction

Product Identification and Shipping List

To identify the HD 3.0T Shoulder Coil, refer to the coil label Figure 1.

Figure 1. Coil Label

Figure 2 shows a picture of the HD 3.0T Shoulder Coil.

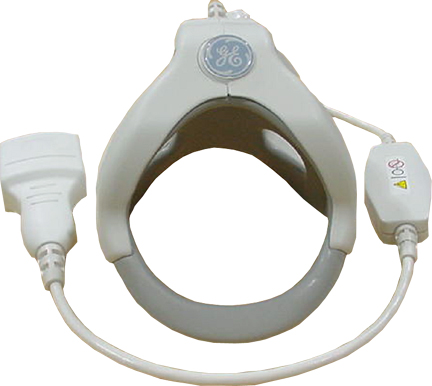

Figure 2. HD 3.0T Shoulder Coil
Table 1. Shipping List
Description GEHC Part # Qty
Coil24143311
Patient PadU1-1503501
Spacer Pad24119461
Phantom Holder SetU1-1504121
Strap and bracket assy, hook24146871
Strap and bracket assy, loop24146881
Operators Guide 24174051

Related Documentation

Operator’s Guide, GE Part Number 2417405

Environmental Requirements

Storage Requirements

Coil should be stored in the scanner room.

Dimensions

8.5” L x 9.1” W x 12.4” H (21.7 cm x 23.2 cm x 31.6 cm)

Weight

5.0 lbs. (2.3 kg)
