• SIGNA MR355 / SIGNA MR360
  • Service Manual
  • 5856356-3EN Revision 5.0
  • Basic Service Documentation. Copyright General Electric Company.
  • Object ID: 00000018WIA30E32030GYZ
  • Topic ID: id_13107410 Version: 1.2
  • Date: Jul 6, 2019 12:17:31 AM

wheel on table top frame

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
10 minutes120 minutes0 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Spanners (1/2,3/4,3/8,7/16,5/16,32)One for each size---
Circlip inserter (A-150,A170)One for each size---
Hex. Socket (9/16,3/4,3/8)One for each size---
Scale (15cms & 30 cms)One for each size---
Ball driver (5/32,5/64,3/32,1/8,7/64,9/16)One for each size---
Allen key (5/32,5/64,3/32,1/8,7/64,9/16)One for each size---
Flat nose plier----
Cutter----
Copper hammer----
Screw driver (8mm, 4mm)One for each size---
Knife ----
Soft mallet----
Torque wrench (40-120 kg-cm,10 –50 lb-ft)----
Table 3. Consumables
ItemQuantityEffectivityPart numberManufacturer
Locktite / Primer (242, 569, 680, 415, 770)One for each size---
IPA----
White Marker----
Grease Mobil HSC 32----
Cotton waste White (High grade)----
Table 4. Replacement parts
ItemQuantityEffectivityPart numberManufacturer
Refer to Low Height Fixed Table FRU Manual1---
Table 5. Safety

Procedure

  1. Move table to topmost position
  2. Turn the system power OFF. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker.
  3. remove outer scissor cover

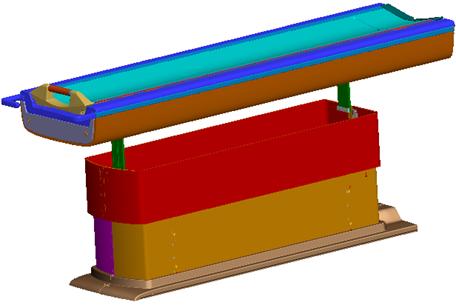

    Figure 1. Remove outer scissor cover
  4. Remove table top side FRP covers.

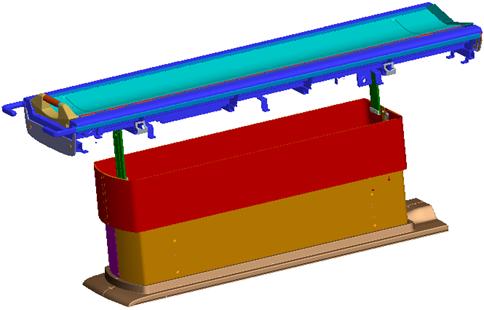

    Figure 2. Remove table top side FRP covers
  5. Remove wheel guide fixed on wheel
  6. remove the shaft holder
  7. Pull the table about 3mm up, replace the wheel and restore shaft holder
  8. restore wheel guide
  9. restore table top side FRP covers, restore table outer scissor covers
  10. restore inner scissor and table base FRP cover

Finalization

  1. Turn the system power ON. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker.
  2. Level the Table and perform Height Adjustment. Refer to LEVELING FIXED TABLE and TOP HEIGHT ADJUSTMENT.
  3. Fix the FRP Covers of the Table.
  4. Perform CRADLE HOME SENSOR CHECK .
  5. Check the Table Function. Refer to TABLE CHECKS AFTER INSTALLATION .
  6. Perform Express Coil MCQA Test to check that the PA coil cable is properly connected.
