Delrin wheel Replacement

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
10 minutes120 minutes0 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Standard Tool (non-ferrous) 1---
Table 3. Safety
Figure 1. DO NOT TAKE THE TABLE BEYOND THE MARKED LINE

Procedure

  1. Move the cradle inside the bore until the Delrin wheel exposed completely
  2. Turn the system power OFF. Refer to Lockout / Tagout for System Cabinet PDU Main Breaker.
  3. Remove the right top cover from the table. Refer to Scissor Covers.
  4. Remove the Table Top side FRP covers fixing screws in the Table and remove side FRP covers.
    Figure 2. Remove Side FRP Covers
  5. Remove the Screws of the Delrin wheel.

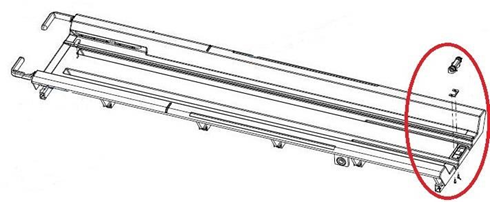

    Figure 3. Remove the Screws of the Delrin wheel
  6. Take out the Delrin wheel and replace a new one, fix the new Delrin wheel to the tabletop assy.

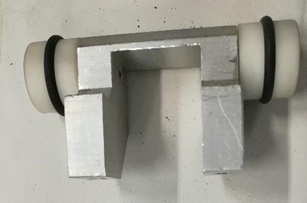

    Figure 4. Replace the Delrin wheel
  7. Install tabletop side FRP covers
  8. Fix the scissor covers from the table
