SCISSOR COVERS

Prerequisites

Table 1. Personnel requirements
Required personsPreliminary requirementsProcedureFinalization
20 minutes30 minutes0 minutes
Table 2. Tools and test equipment
ItemQuantityEffectivityPart numberManufacturer
Standard Tool (non-ferrous)1---
Table 3. Safety

Disassembly of SCISSOR COVERS

Procedure

  1. Loosen all 14 screws of the Top cover-using screwdriver as shown in Figure 1 and Figure 2 . After Loosening, hold the cover in one hand and remove all the screws with the other hand.

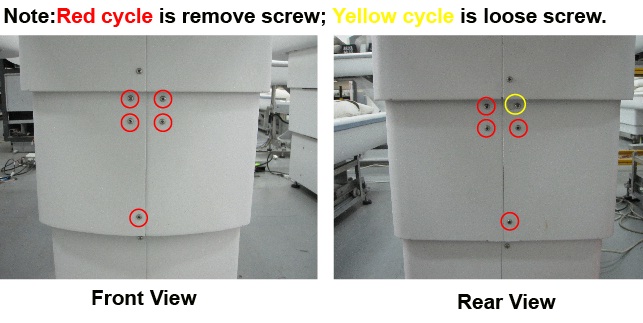

    Figure 1. Remove screws for top cover

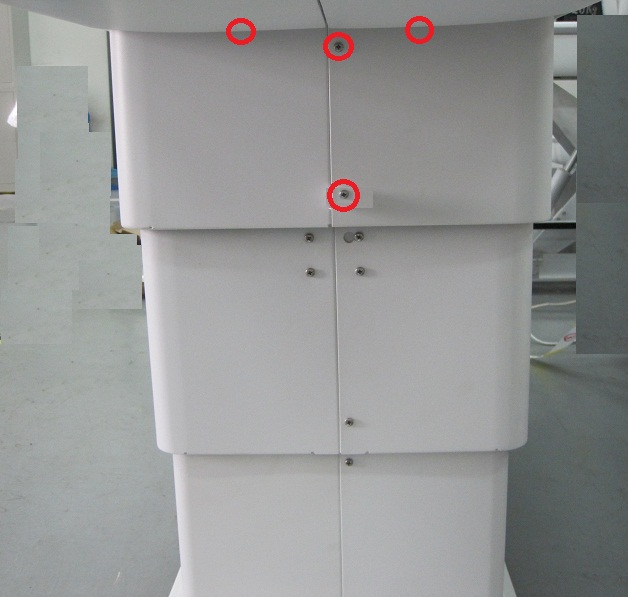

    Figure 2. Remove screws for top cover
  2. Loosen all 10 screws of the middle cover-using screwdriver as shown in Figure 3 . After Loosening, hold the cover in one hand and remove 9 screws with the other hand.

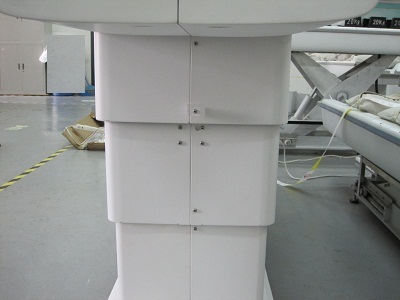

    Figure 3. Remove middle cover
  3. Loosen all 12 screws of the middle cover-using screwdriver as shown in Figure 4 . After Loosening, hold the cover in one hand and remove all 12 screws with the other hand.

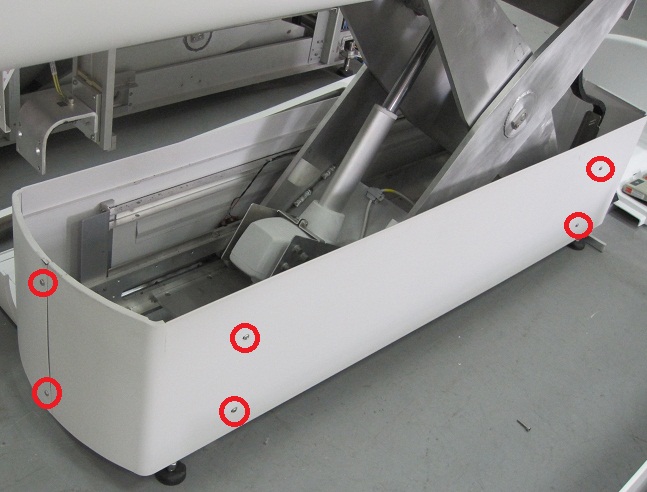

    Figure 4. Remove inner cover

Assembly of SCISSOR COVERS

Procedure

  1. Assembly the Scissor Covers by the reverse order of disassembly.
  2. Tighten all the screws using the screw drive around the Cover. Maintain uniform gap between covers while tightening front and back end of the Table.
    Figure 5. Tighten all the screws

What to do next

Finalization

No finalization steps.
