SIGNA MR355 / SIGNA MR360
Service Manual
5856356-3EN Revision 5.0
Basic Service Documentation. Copyright General Electric Company.
Object ID: 00000018WHA16F3D0GYZ
Topic ID: task_bmc_xtw_gnb Version: 1.2
Date: Dec 4, 2020 1:07:04 PM

Configure an NTP server

About this task

Whether the customer's site uses a Domain Name System (DNS) server or a Proxy server for communications between the scanner and IPM, you must configure the Master network time protocol (NTP) server.

Note: Perform this procedure if you did not select this option when you Configure a DNS server or if you Configure a Proxy server instead.

Procedure

On the Common Service Desktop, navigate to MR Guided Install > Basic Configuration > Network info.
In the network configuration page, enter the IP address in the Enable Network Time Protocol field and then click Accept.

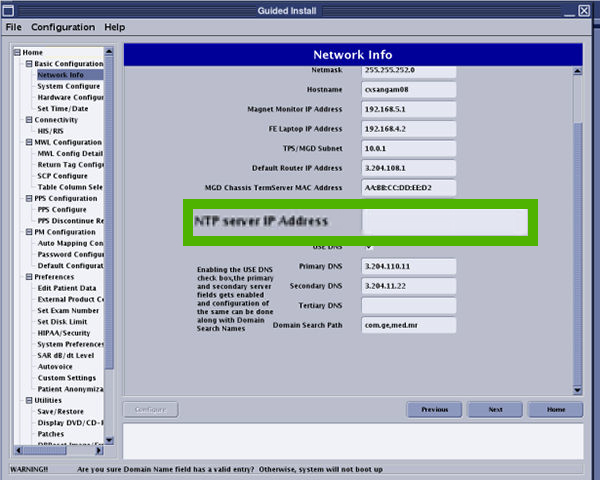

Figure 1. Guided Install window - NTP server

The options displayed depend on your imaging device; see its Configuration Manual for specific details.
