Peripheral Test

This protocol for peripheral test is under Protocol Management-> Service

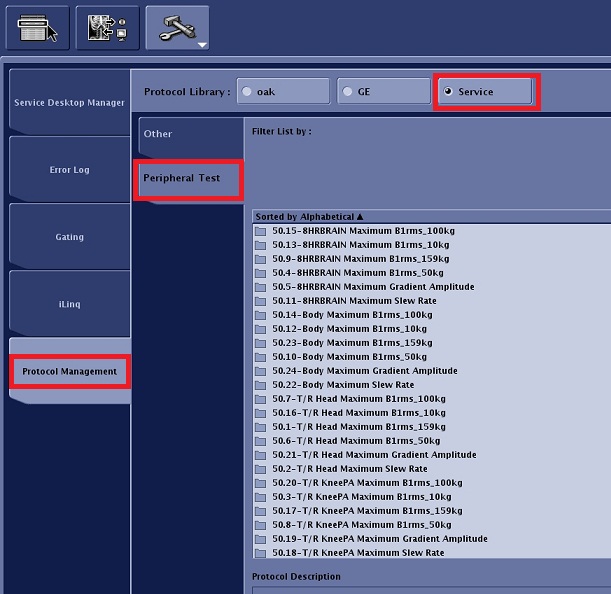

Figure 1. Peripheral Test

1. Select a coil from 8HRBRAIN, Body, T/R Head and T/R Knee PA.

2. Set patient weight to 10, 50, 100 or 159kg.

3. Select a protocol base on the coil and patient weight from Service -> Peripheral Test.

Note:

Maximum B1rms protocols provide series with high transmit RF field, but not exceed the coil limitations.

Maximum Gradient Amplitude protocols provide series with high gradient amplitude.

Maximum Slew Rate protocols provide series with high slew rates.
