HP Z400 Ethernet Switch Replacement

Prerequisites

Table 1 Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	Not Applicable	15 minutes	5 minutes

Table 2 Tools and test equipment
Item	Quantity	Effectivity	Part number	Manufacturer
Standard Screwdriver	1	-	-	-

Table 3 Safety

FATAL ELECTRIC SHOCK HAZARD!
Hazardous voltages exist in the goc when energized.
TO PREVENT POSSIBLE FATAL ELECTRIC SHOCK, Shut down the Host computer and perform LOTO on the GOC BEFORE beginning THIS PROCEDURE. See the MR Service Safety Manual, PN 5452735.

Close the application software on the host computer. Perform LOTO on the GOC. See the MR Service Safety Manual, PN 5452735.
Remove the right cover of the GOC, and disconnect the ground lead that connects the cover to the main chassis.

note:
Avoid straining the short ground lead.

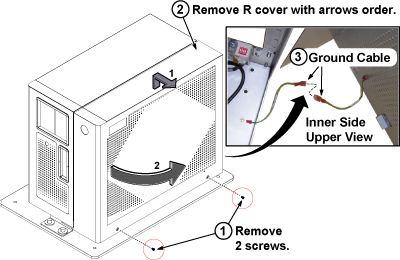

Figure 1. Removing Right Cover
Cut the two tie wraps securing the power cable.
Disconnect the power cable from the Ethernet switch.
Remove all cables connected to the Ethernet switch, and make a note of labeling for reconnection.

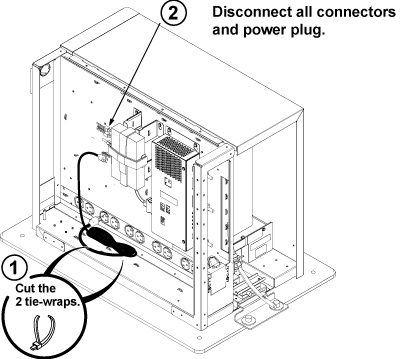

Figure 2. Cable Removal from Ethernet Switch
Remove the Velcro tapes from the Ethernet switch.
Remove the Ethernet switch from the Ethernet switch support bracket on the GOC.

Figure 3. Ethernet Switch Removal
Install the replacement Ethernet switch by reversing the above steps.
