SIGNA™ Hero 3.0T Service Methods
5852800-8EN Revision 1.0
Object ID: 00000018WIA3046D010GYZ
Topic ID: id_2002968 Version: 3.4
Date: Jul 7, 2021 3:51:58 PM

Removing the magnet upper service access panel

Prerequisites


Personnel requirements
Required persons	Preliminary requirements	Procedure	Finalization
1	-	10 minutes	-


Tools and test equipment
Item	Quantity	Part number	Manufacturer
Nonmagnetic Titanium Service Tool Kit, Small Set	1	5113258	-


Required conditions
Rear service access panel is removed.

Procedure

Remove two screws securing the upper service access panel to the magnet enclosure.

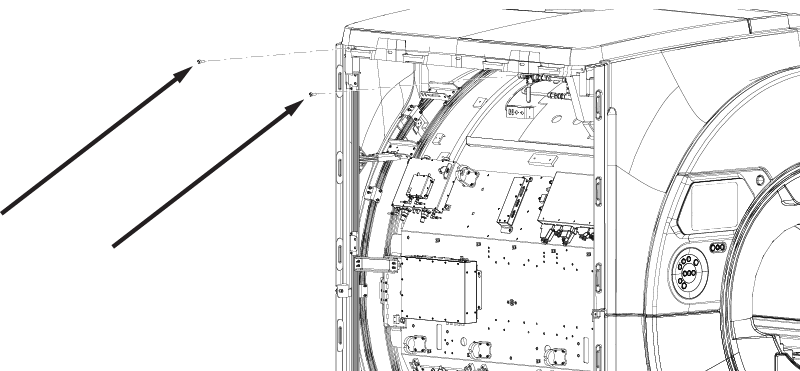

Figure 1. Upper service access panel screws
Slide the panel outward away from the magnet and remove it from the magnet enclosure.
